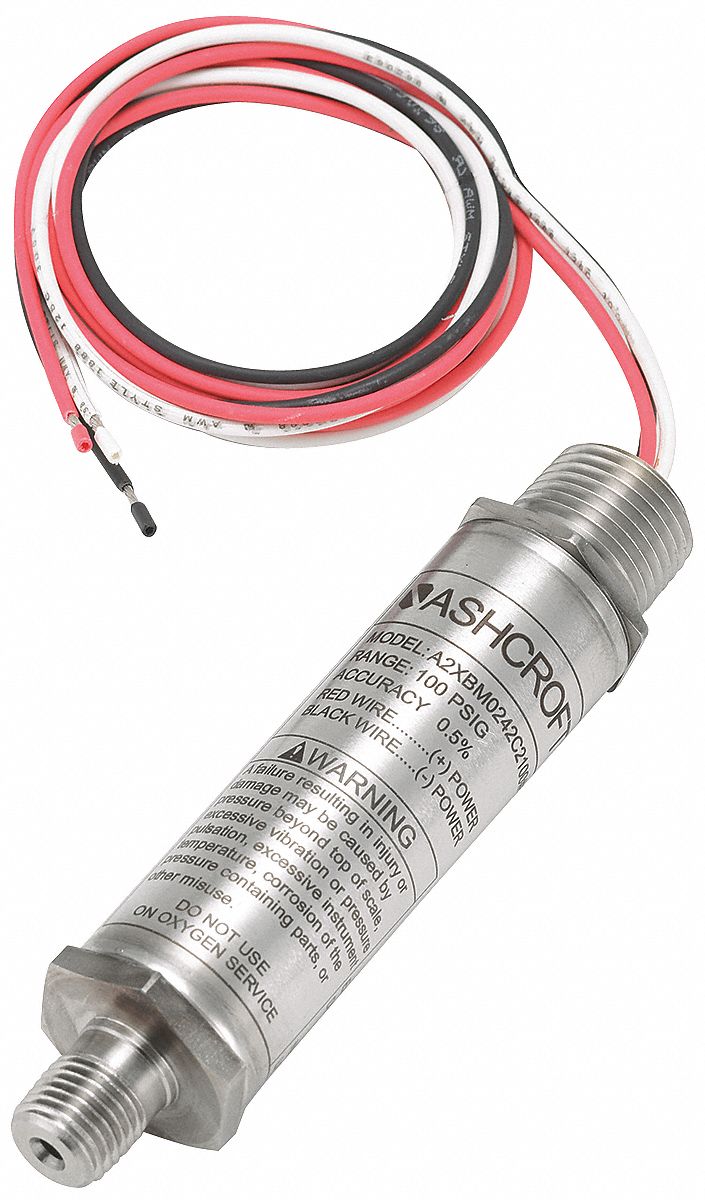

Ashcroft 3G-OTH-175365 — Technical Specifications

Name: Ashcroft 3G-OTH-175365 Pressure Transmitter: 0 psi to 100 psi, 1 to 5V DC, Cable & Wire Leads, IP65 /4X/IP65 /7/IP65 /9 (MPN A2XBM0215C2100#G). Key specifications — Process Connection Type: NPT; Intrinsically Safe: Not Specified Intrinsically Safe; Housing Material: Stainless Steel; IP Rating: IP65; Series: A2X; NEMA Rating: 4X; Output: 1 to 5V DC; Overpressure: 1.5x Range.
Brand: Ashcroft

The ASHCROFT A2X Series Explosion-Proof-Rated Transmitter measures gauge pressure from 0 psi to 100 psi with a 1 to 5V DC output. It features a stainless steel housing, NPT process connection, and IP65/NEMA 4X rating. Accuracy is ±0.50% of Full Scale, with overpressure of 1.5x Range and burst pressure of 2x Range. Safety rated Class II, Div 1 and 2, Group E, F, G; includes NIST-traceable calibration certificate.

View Product & Quote

Technical Specifications

Parameter	Value
DC	1 to 5V
Type	Cable & Wire Leads, IP65 /4X/IP65 /7/IP65 /9
Brand	ASHCROFT
Output	1 to 5V DC
Series	A2X
Accuracy	±0.50% of Full Scale
IP Rating	IP65
NEMA Rating	4X
Overpressure	1.5x Range
Product Type	Explosion-Proof-Rated Transmitter
Safety Rating	Class II, Div 1 and 2, Group E, F, G
Burst Pressure	2x Range
Housing Material	Stainless Steel
Intrinsically Safe	Not Specified Intrinsically Safe
Pressure Type Measured	Gauge
Process Connection Type	NPT
Manufacturer Part Number	A2XBM0215C2100#G
NIST Traceable Certificate	NIST-Traceable Calibration Certificate Included
