Ashcroft 3G-OTH-175340 — Technical Specifications

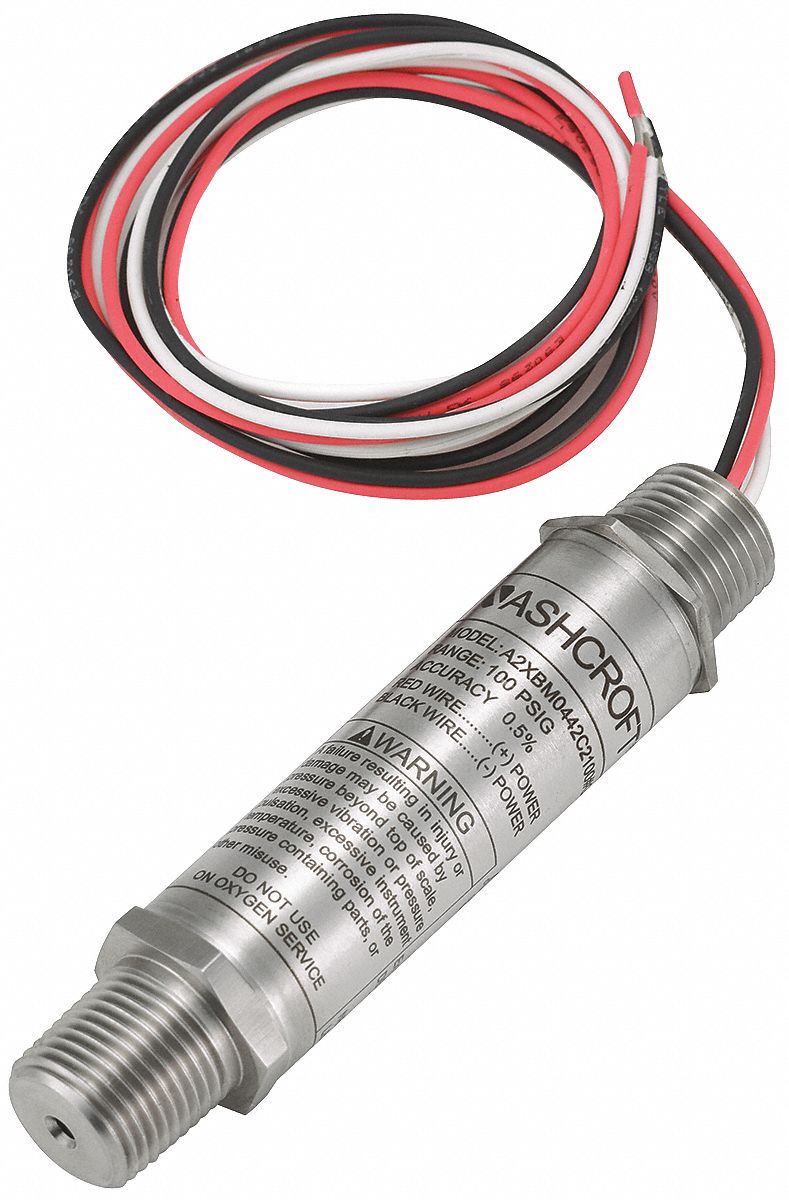

Name: Ashcroft 3G-OTH-175340 Pressure Transmitter: -15 psi to 15 psi, 1 to 5V DC, Cable & Wire Leads, IP65 /4X/IP65 /7/IP65 /9 (MPN A2XBM0415C215#G&VAC). Key specifications — Process Connection Type: NPT; Intrinsically Safe: Not Specified Intrinsically Safe; Housing Material: Stainless Steel; IP Rating: IP65; Series: A2X; NEMA Rating: 4X; Output: 1 to 5V DC; Overpressure: 1.5x Range.
Brand: Ashcroft

The ASHCROFT A2X Series Explosion-Proof-Rated Transmitter measures compound pressure from -15 psi to 15 psi with ±0.50% of Full Scale accuracy. It features a 1 to 5V DC output, NPT process connection, and stainless steel housing with IP65/NEMA 4X ratings. Safety-rated Class II, Div 1 and 2, Groups E, F, G, it includes a NIST-Traceable Calibration Certificate.

View Product & Quote

Technical Specifications

Parameter	Value
DC	1 to 5V
Type	Cable & Wire Leads, IP65 /4X/IP65 /7/IP65 /9
Brand	ASHCROFT
Output	1 to 5V DC
Series	A2X
Accuracy	±0.50% of Full Scale
IP Rating	IP65
NEMA Rating	4X
Overpressure	1.5x Range
Product Type	Explosion-Proof-Rated Transmitter
Safety Rating	Class II, Div 1 and 2, Group E, F, G
Burst Pressure	2x Range
Pressure Range	-15 psi to 15 psi
Housing Material	Stainless Steel
Intrinsically Safe	Not Specified Intrinsically Safe
Pressure Type Measured	Compound
Process Connection Type	NPT
Manufacturer Part Number	A2XBM0415C215#G&VAC
NIST Traceable Certificate	NIST-Traceable Calibration Certificate Included
