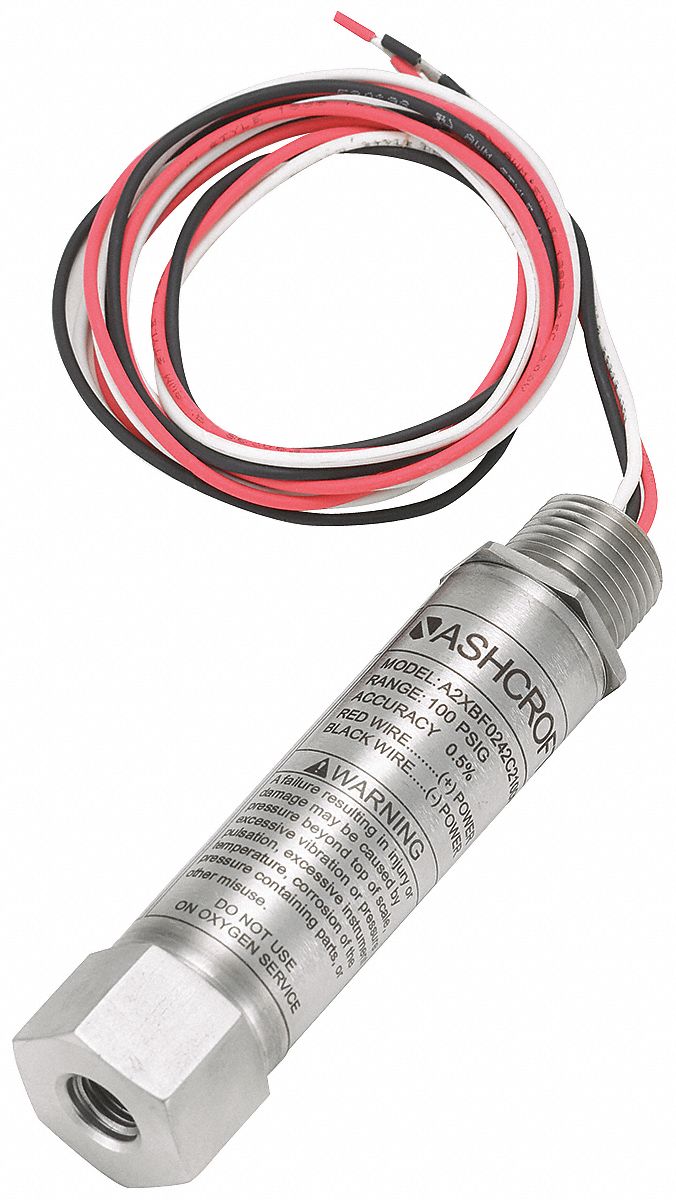

Ashcroft 3G-OTH-175480 — Technical Specifications
The ASHCROFT A2X Series explosion-proof pressure transmitter measures gauge pressure from 0 psi to 5,000 psi with a 1 to 5V DC output and ±0.50% of full scale accuracy. It features a stainless steel housing, NPT process connection, IP65 and NEMA 9 ratings, and is rated Class I, Div 1 and 2, Groups A, B, C, D. Overpressure capacity is 1.2x range, burst pressure is 1.5x range, and a NIST-traceable calibration certificate is included.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 1 to 5V |
| Type | Cable & Wire Leads, IP65 /4X/IP65 /7/IP65 /9 |
| Brand | ASHCROFT |
| Output | 1 to 5V DC |
| Series | A2X |
| Accuracy | ±0.50% of Full Scale |
| IP Rating | IP65 |
| NEMA Rating | 9 |
| Overpressure | 1.2x Range |
| Product Type | Explosion-Proof-Rated Transmitter |
| Safety Rating | Class I, Div 1 and 2, Group A, B, C, D |
| Burst Pressure | 1.5x Range |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | A2XBF0215C25000#G |
| NIST Traceable Certificate | NIST-Traceable Calibration Certificate Included |
