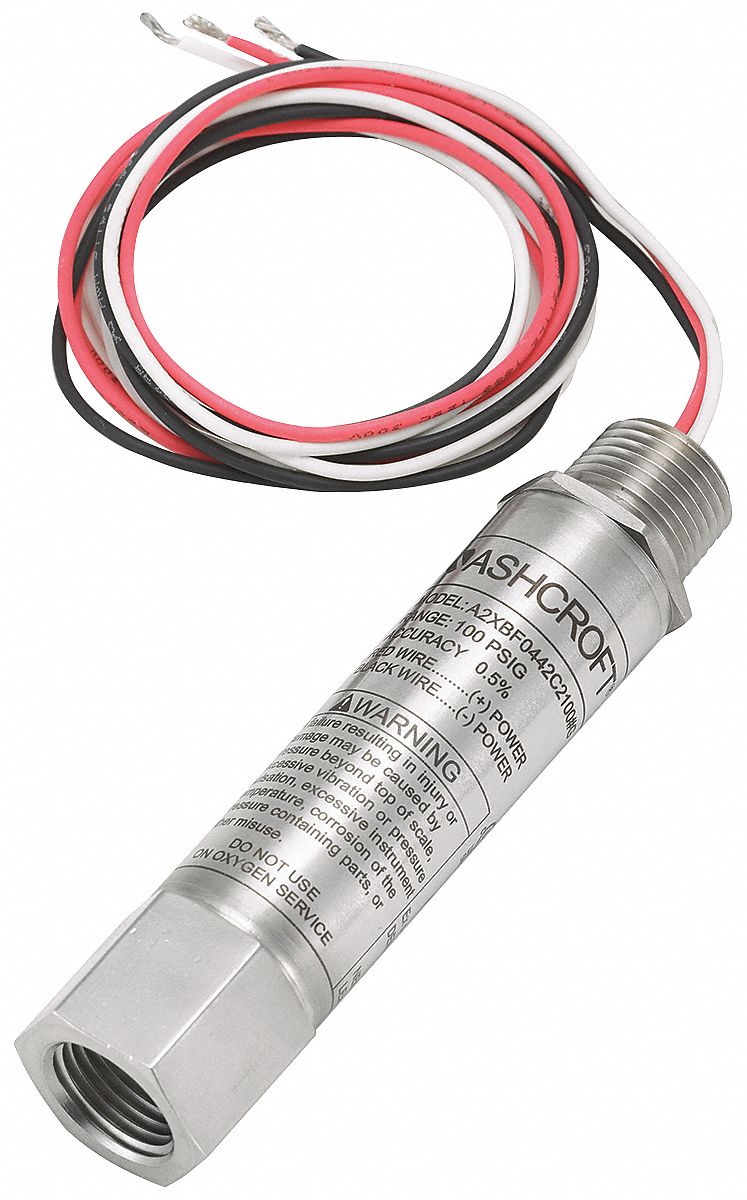

Ashcroft 3G-OTH-175471 — Technical Specifications
The ASHCROFT A2X Series Explosion-Proof-Rated Transmitter is a gauge pressure transmitter with a 0 psi to 100 psi range and a 1 to 5V DC output. It features a stainless steel housing, NPT process connection, and is rated IP65 with NEMA 9 for hazardous locations. The transmitter is Intrinsically Safe, Class III, Div 1 and 2 rated, with ±0.50% of Full Scale accuracy, overpressure of 1.5x Range, and burst pressure of 2x Range. A NIST-Traceable Calibration Certificate is included.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 1 to 5V |
| Type | Cable & Wire Leads, IP65 /4X/IP65 /7/IP65 /9 |
| Brand | ASHCROFT |
| Output | 1 to 5V DC |
| Series | A2X |
| Accuracy | ±0.50% of Full Scale |
| IP Rating | IP65 |
| NEMA Rating | 9 |
| Overpressure | 1.5x Range |
| Product Type | Explosion-Proof-Rated Transmitter |
| Safety Rating | Class III, Div 1 and 2 |
| Burst Pressure | 2x Range |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Intrinsically Safe |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | A2XBF0415C2100#G |
| NIST Traceable Certificate | NIST-Traceable Calibration Certificate Included |
