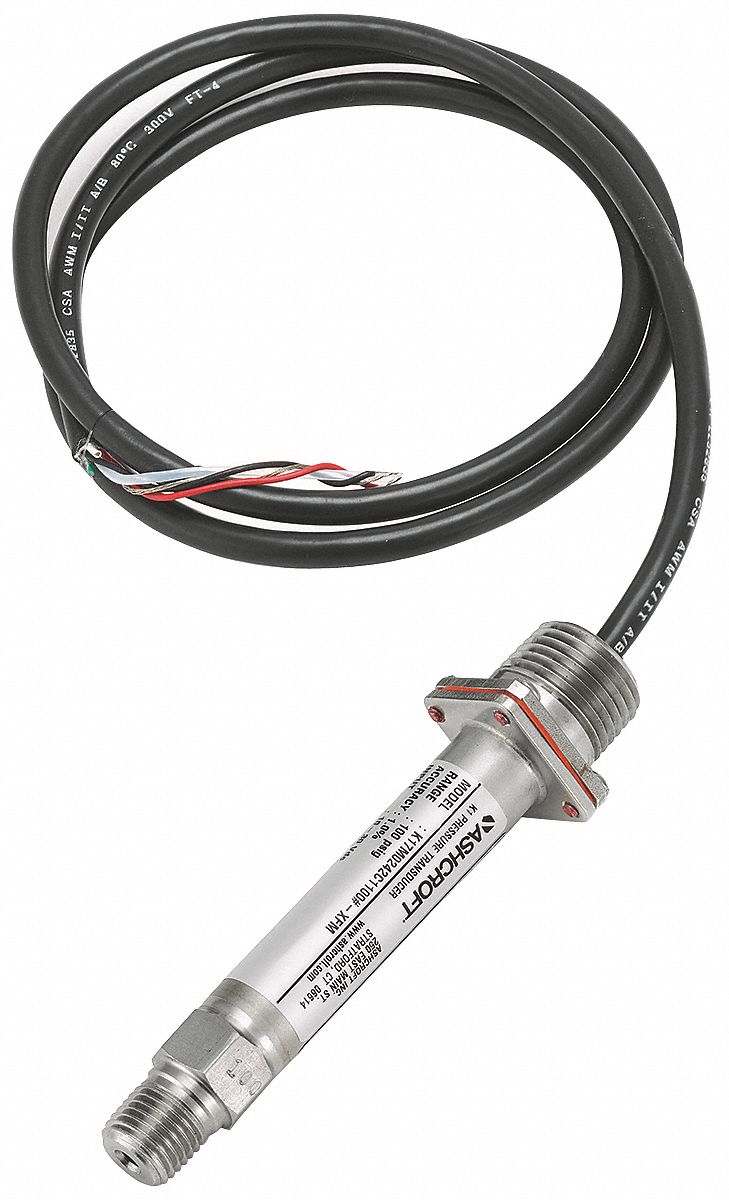

Ashcroft 3G-OTH-176220 — Technical Specifications

Name: Ashcroft 3G-OTH-176220 Pressure Transmitter: 0 psi to 3,000 psi, 4 to 20mA DC, Cable & Wire Leads, IP67 /4X, Gauge (MPN K17MO242C13000#XFM). Key specifications — Process Connection Type: NPT; Intrinsically Safe: Intrinsically Safe; Housing Material: Stainless Steel; IP Rating: IP67; Series: K1; NEMA Rating: 4X; Output: 4 to 20mA DC; Overpressure: 1.5x Range.
Brand: Ashcroft

The ASHCROFT K1 Series Intrinsically Safe-Rated Transmitter (SKU 5DLV7) measures gauge pressure from 0 psi to 3,000 psi with a 4 to 20mA DC output and ±1% of Full Scale accuracy. It features a stainless steel housing, IP67 and NEMA 4X ratings, an NPT process connection, and a conduit shielded cable. Overpressure capability is 1.5x range, burst pressure is 3x range.

View Product & Quote

Technical Specifications

Parameter	Value
DC	4 to 20mA
Type	Cable & Wire Leads, IP67 /4X, Gauge
Brand	ASHCROFT
Output	4 to 20mA DC
Series	K1
Accuracy	±1% of Full Scale
IP Rating	IP67
NEMA Rating	4X
Overpressure	1.5x Range
Product Type	Intrinsically Safe-Rated Transmitter
Burst Pressure	3x Range
Housing Material	Stainless Steel
Intrinsically Safe	Intrinsically Safe
Pressure Type Measured	Gauge
Process Connection Type	NPT
Manufacturer Part Number	K17MO242C13000#XFM
NIST Traceable Certificate	No NIST-Traceable Calibration Certificate Included
