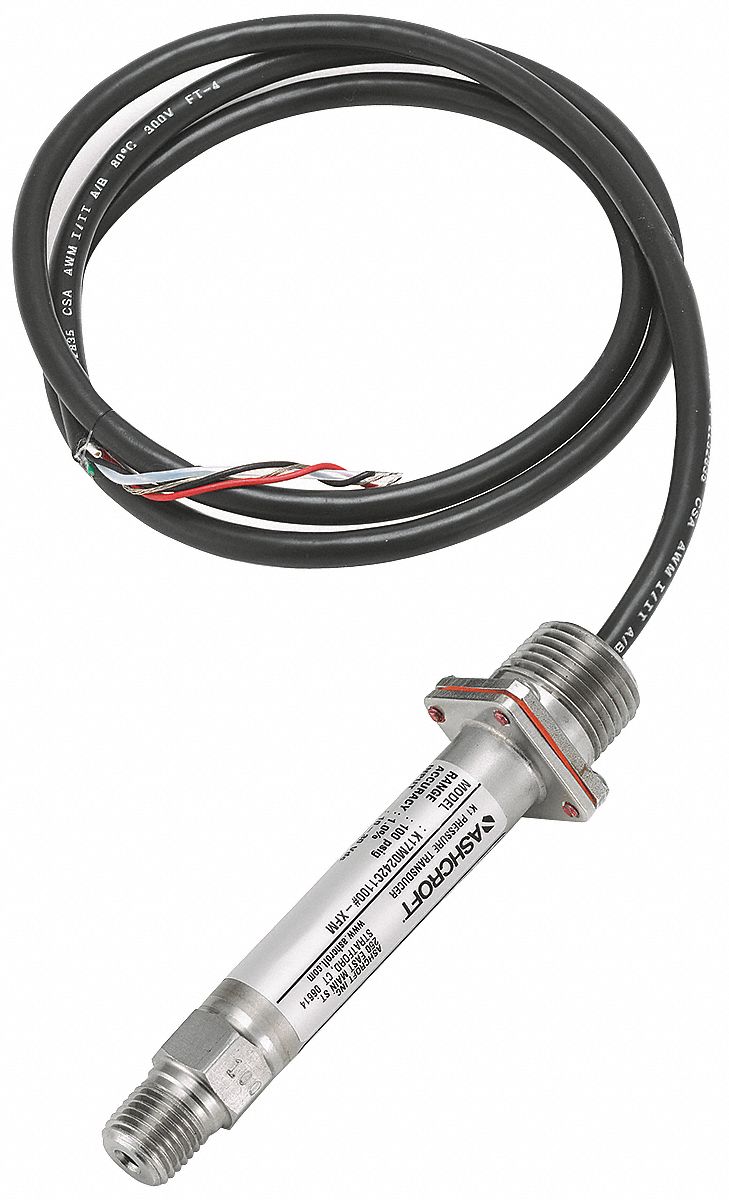

Ashcroft 3G-OTH-176211 — Technical Specifications
The ASHCROFT K1 Series Intrinsically Safe-Rated Transmitter (SKU 5DEP5) is a compound pressure transmitter with a range of -15 psi to 30 psi and a 4 to 20mA DC output. It features a stainless steel housing, IP67 and NEMA 4X ratings, and a 1/4 in NPT male process connection. The transmitter offers ±1% of Full Scale accuracy, with overpressure of 2x Range and burst pressure of 8x Range.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 4 to 20mA |
| Type | Cable & Wire Leads, IP67 /4X |
| Brand | ASHCROFT |
| Output | 4 to 20mA DC |
| Series | K1 |
| Accuracy | ±1% of Full Scale |
| NPT Male | 1/4 in |
| IP Rating | IP67 |
| NEMA Rating | 4X |
| Overpressure | 2x Range |
| Product Type | Intrinsically Safe-Rated Transmitter |
| Burst Pressure | 8x Range |
| Pressure Range | -15 psi to 30 psi |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Intrinsically Safe |
| Pressure Type Measured | Compound |
| Process Connection Type | NPT |
| Manufacturer Part Number | K17MO242C130#&VACXFM |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
