Ashcroft 3G-OTH-176456 — Technical Specifications

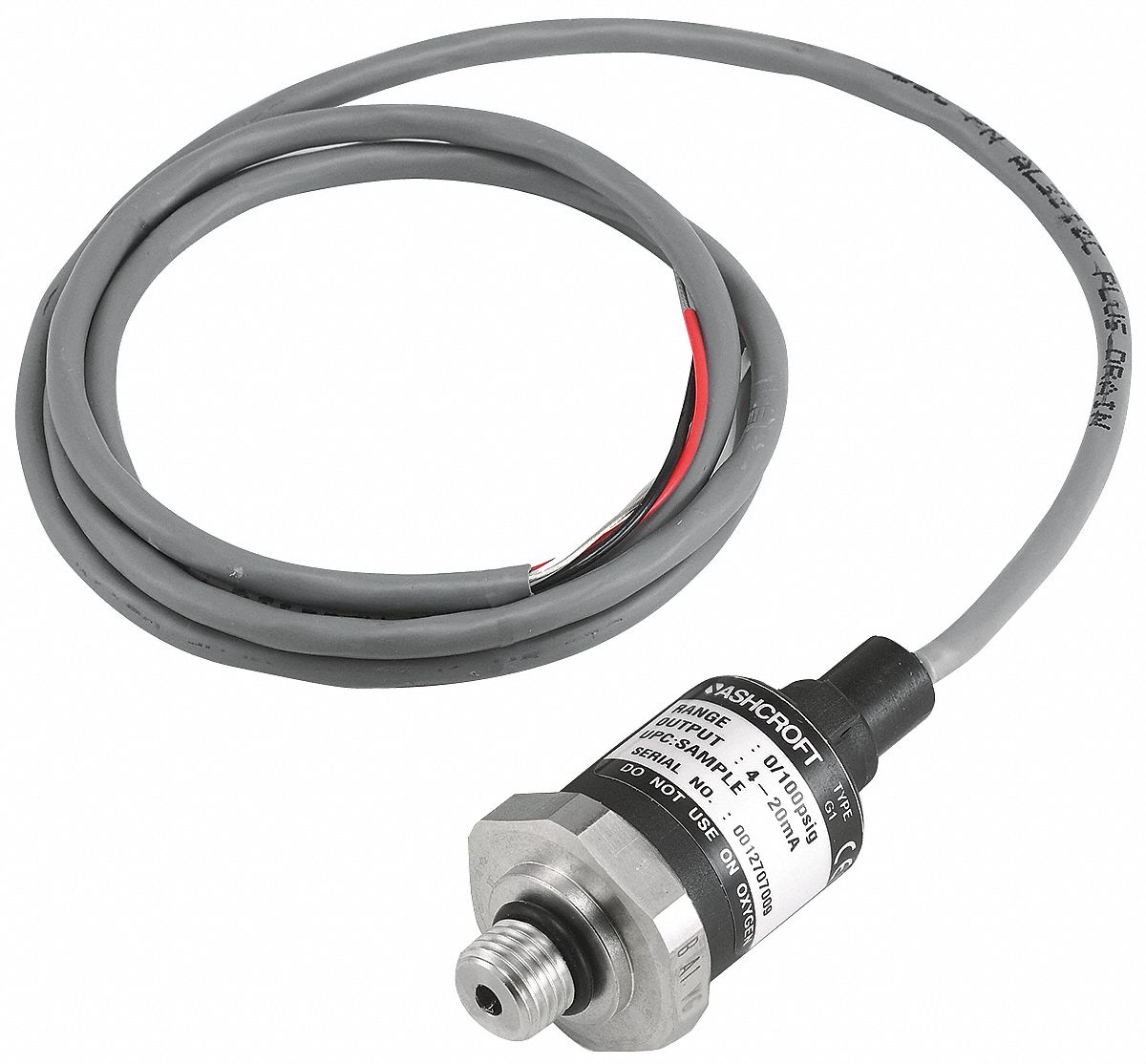

The ASHCROFT G2 Pressure Transmitter with Cable & Wire Leads (SKU 5DEN2) is a pressure transmitter offering a -15 psi to 30 psi range and a 4 to 20mA DC output. It features ±0.5% accuracy, an IP67 and NEMA 4X rating, a nylon housing, and a 7/16 in Male SAE process connection. Overpressure is 2x range, burst pressure is 10x range, and no NIST-traceable calibration certificate is included.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 4 to 20mA |
| Type | Cable & Wire Leads |
| Brand | ASHCROFT |
| Output | 4 to 20mA DC |
| Series | G2 |
| Accuracy | ±0.5% |
| Male SAE | 7/16 in |
| IP Rating | IP67 |
| NEMA Rating | 4X |
| Overpressure | 2x Range |
| Burst Pressure | 10x Range |
| Pressure Range | -15 psi to 30 psi |
| Housing Material | Nylon |
| Process Connection Type | SAE |
| Manufacturer Part Number | G17MEK42F2VAC/30# |
| Process Connection Gender | Male |
| Calibration Certificate Included | No NIST-Traceable Calibration Certificate Included |
