Ashcroft 3G-OTH-176454 — Technical Specifications

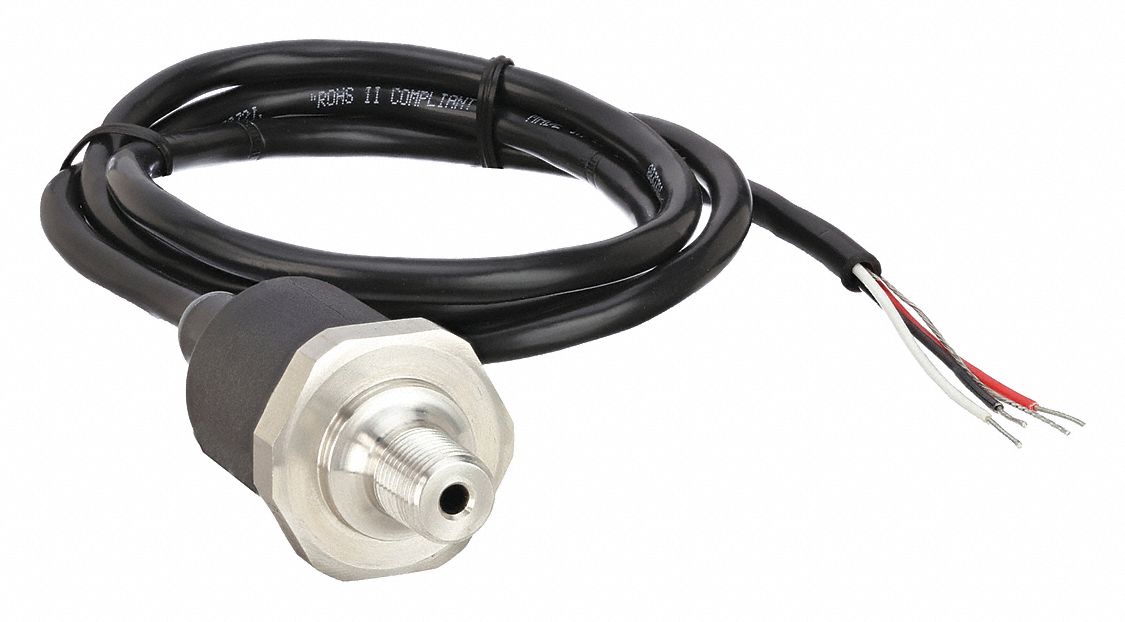

The ASHCROFT G2 Series Pressure Transmitter (SKU 5DEL1) is a pressure transmitter with cable and wire leads, offering a pressure range of -15 psi to 30 psi and a 4 to 20mA DC output. It features an accuracy of ±0.5%, an IP67 and NEMA 4X rating, a nylon housing, and a 1/8 in Male NPT process connection. The transmitter has an overpressure capacity of 2x range and a burst pressure of 10x range.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 4 to 20mA |
| Type | Cable & Wire Leads, IP67 /4X |
| Brand | ASHCROFT |
| Output | 4 to 20mA DC |
| Series | G2 |
| Accuracy | ±0.5% |
| Male NPT | 1/8 in |
| IP Rating | IP67 |
| NEMA Rating | 4X |
| Overpressure | 2x Range |
| Burst Pressure | 10x Range |
| Pressure Range | -15 psi to 30 psi |
| Housing Material | Nylon |
| Process Connection Type | NPT |
| Manufacturer Part Number | G17M0142F2VAC/30# |
| Process Connection Gender | Male |
| Calibration Certificate Included | No NIST-Traceable Calibration Certificate Included |
