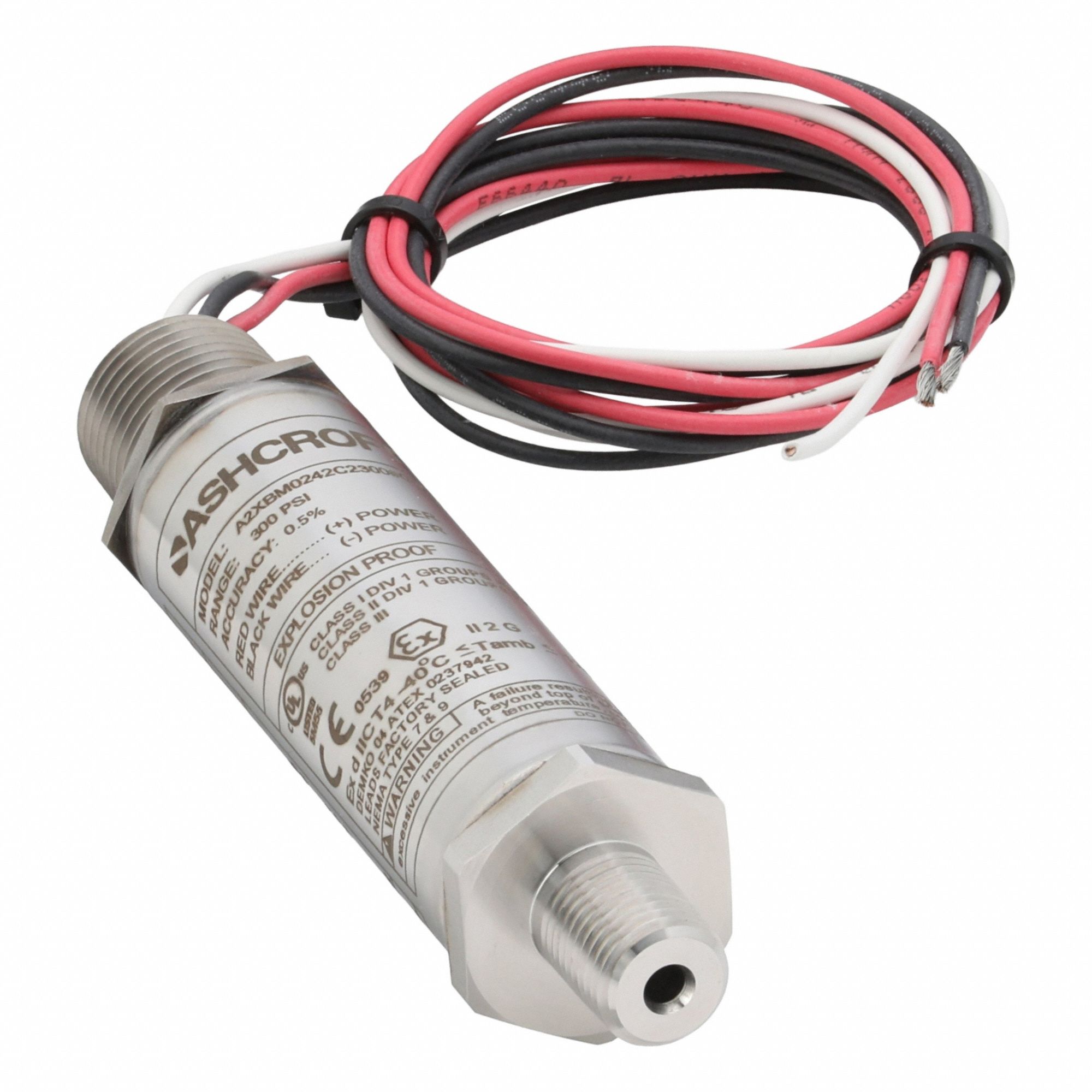

Ashcroft 3G-OTH-175335 — Technical Specifications
The ASHCROFT A2X Explosion-Proof-Rated Transmitter measures gauge pressure from 0 psi to 300 psi with a 4 to 20mA DC output and ±0.50% of Full Scale accuracy. It features an IP65 / NEMA 4X stainless steel housing, NPT process connection, and is rated Intrinsically Safe for Class III, Div 1 and 2 environments. Overpressure capacity is 1.5x range, burst pressure is 2x range, and a NIST-Traceable Calibration Certificate is included.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 4 to 20mA |
| Type | Cable & Wire Leads, IP65 /4X/IP65 /7/IP65 /9 |
| Brand | ASHCROFT |
| Output | 4 to 20mA DC |
| Series | A2X |
| Accuracy | ±0.50% of Full Scale |
| IP Rating | IP65 |
| NEMA Rating | 4X |
| Overpressure | 1.5x Range |
| Product Type | Explosion-Proof-Rated Transmitter |
| Safety Rating | Class III, Div 1 and 2 |
| Burst Pressure | 2x Range |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Intrinsically Safe |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | A2XBM0242C2300#G |
| NIST Traceable Certificate | NIST-Traceable Calibration Certificate Included |
