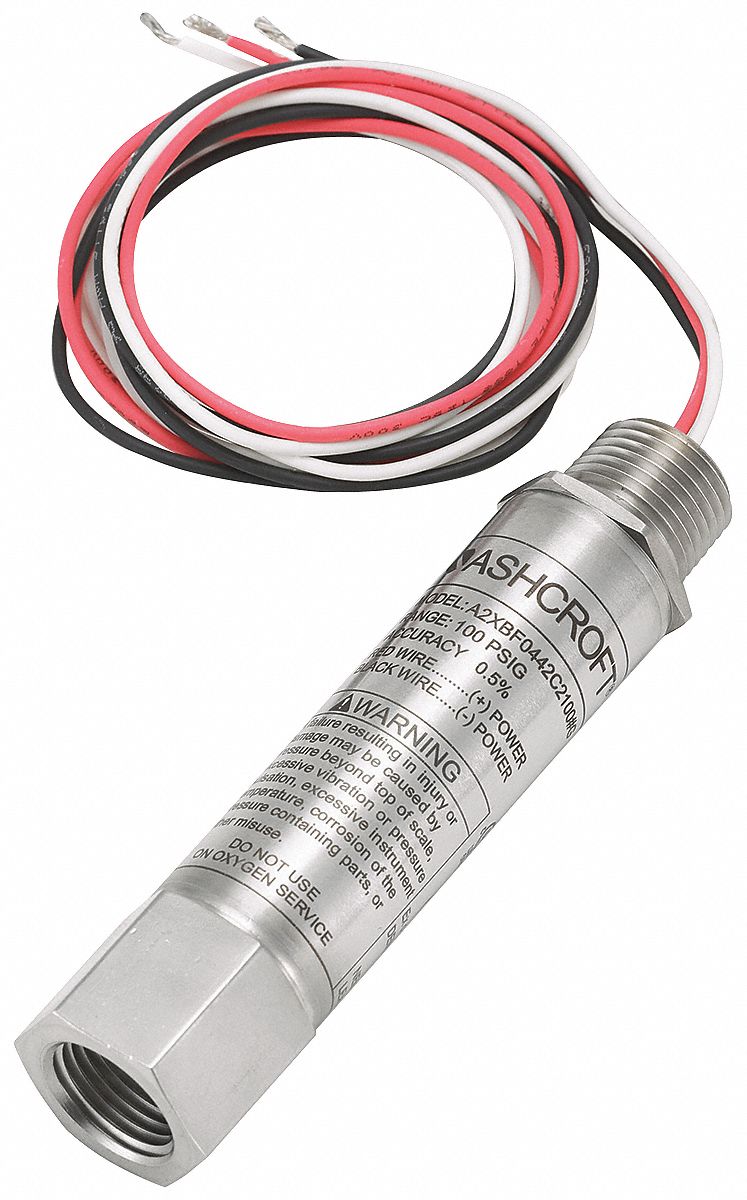

Ashcroft 3G-OTH-175392 — Technical Specifications
The ASHCROFT A2X Series Explosion-Proof-Rated Transmitter measures gauge pressure from 0 psi to 1,000 psi with a 4 to 20mA DC output and ±0.50% of Full Scale accuracy. It features a stainless steel housing, NPT process connection, and is rated IP65 and NEMA 7, with an overpressure of 1.2x Range and burst pressure of 1.5x Range. This intrinsically safe transmitter is certified for Class II, Div 1 and 2, Group F, G, and includes a NIST-Traceable Calibration Certificate.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 4 to 20mA |
| Type | Cable & Wire Leads, IP65 /4X/IP65 /7/IP65 /9 |
| Brand | ASHCROFT |
| Output | 4 to 20mA DC |
| Series | A2X |
| Accuracy | ±0.50% of Full Scale |
| IP Rating | IP65 |
| NEMA Rating | 7 |
| Overpressure | 1.2x Range |
| Product Type | Explosion-Proof-Rated Transmitter |
| Safety Rating | Class II, Div 1 and 2, Group F, G |
| Burst Pressure | 1.5x Range |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Intrinsically Safe |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | A2XBF0442C21000#G |
| NIST Traceable Certificate | NIST-Traceable Calibration Certificate Included |
