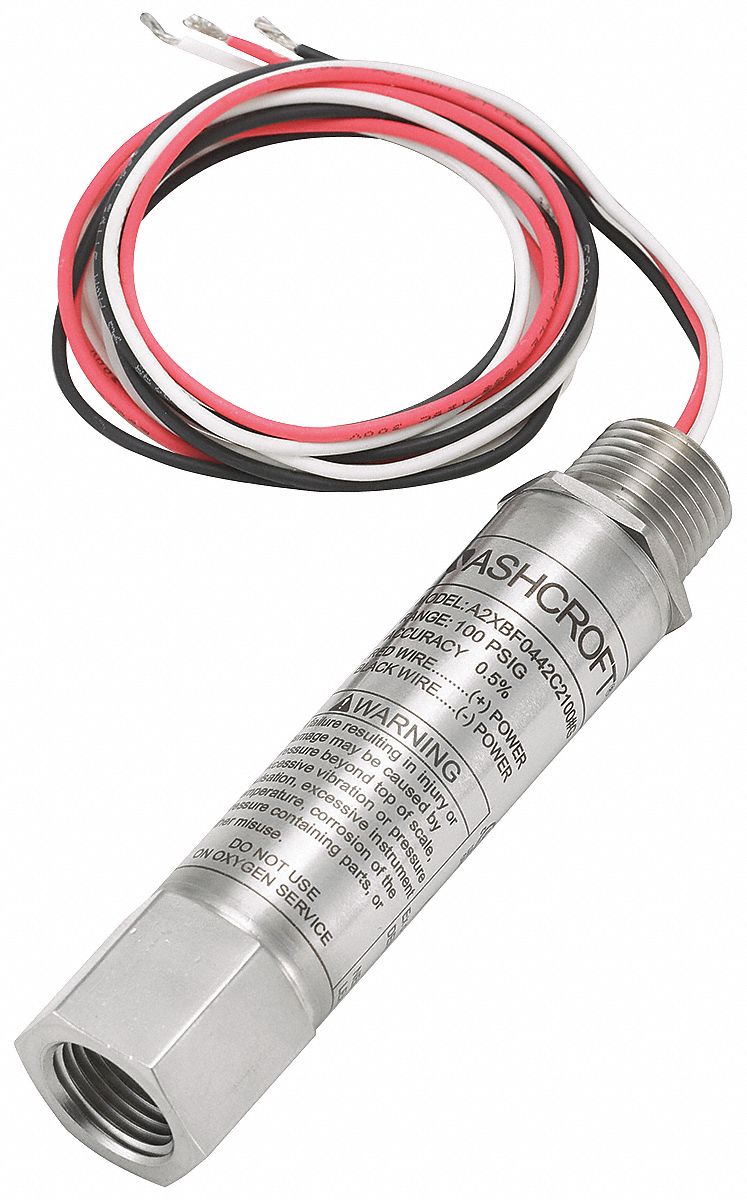

Ashcroft 3G-OTH-175336 — Technical Specifications
The ASHCROFT A2X Series Explosion-Proof-Rated Transmitter measures gauge pressure from 0 psi to 100 psi with a 4 to 20mA DC output and ±0.50% of Full Scale accuracy. It features a stainless steel housing, NPT process connection, IP65/NEMA 4X rating, and is Intrinsically Safe with Class III, Div 1 and 2 safety rating. Overpressure is 1.5x Range and burst pressure is 2x Range; a NIST-Traceable Calibration Certificate is included.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 4 to 20mA |
| Type | Cable & Wire Leads, IP65 /4X/IP65 /7/IP65 /9 |
| Brand | ASHCROFT |
| Output | 4 to 20mA DC |
| Series | A2X |
| Accuracy | ±0.50% of Full Scale |
| IP Rating | IP65 |
| NEMA Rating | 4X |
| Overpressure | 1.5x Range |
| Product Type | Explosion-Proof-Rated Transmitter |
| Safety Rating | Class III, Div 1 and 2 |
| Burst Pressure | 2x Range |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Intrinsically Safe |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | A2XBF0442C2100#G |
| NIST Traceable Certificate | NIST-Traceable Calibration Certificate Included |
