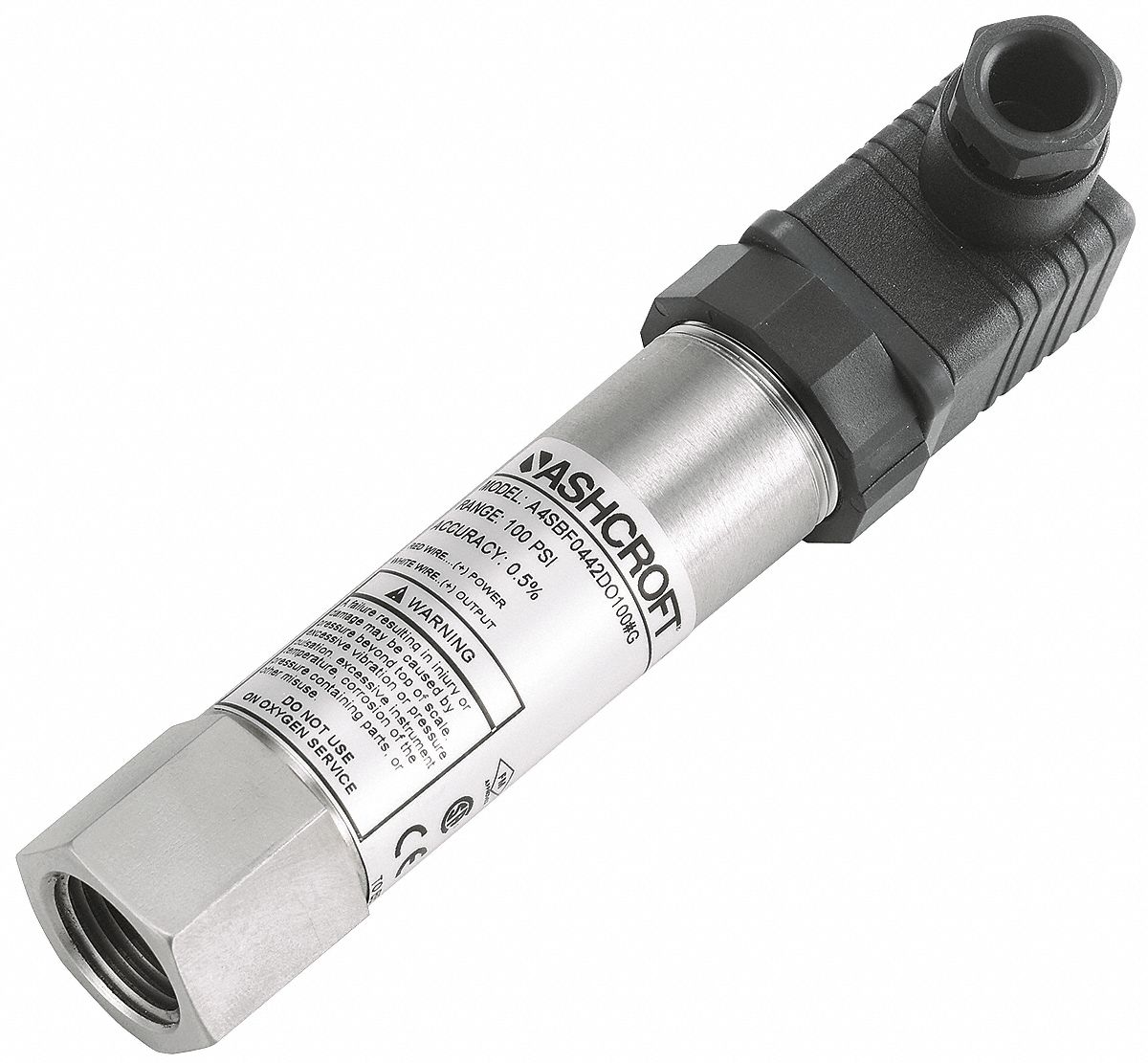

Ashcroft 3G-OTH-176561 — Technical Specifications

Name: Ashcroft 3G-OTH-176561 Pressure Transmitter: 0 psi to 100 psi, 4 to 20mA DC, Hirschmann® Form A DIN 43650-A, IP65 /4X (MPN A4SBF0442D0100#). Key specifications — Process Connection Type: NPT; Intrinsically Safe: Intrinsically Safe; Housing Material: Stainless Steel; IP Rating: IP65; Electrical Connection: Hirschmann® Form A DIN 43650-A; Series: A4; NEMA Rating: 4X; Output: 4 to 20mA DC.
Brand: Ashcroft

The ASHCROFT A4 Series Intrinsically Safe-Rated Transmitter (SKU 5DDK2) measures gauge pressure from 0 psi to 100 psi with a 4 to 20mA DC output and ±0.50% of Full Scale accuracy. It features a stainless steel housing, IP65 and NEMA 4X ratings, a Hirschmann® Form A DIN 43650-A electrical connection, and an NPT process connection. The transmitter is rated Class III, Div 1 and 2 for intrinsically safe applications, with overpressure of 1.5x range and burst pressure of 2x range, and includes a NIST-traceable calibration certificate.

View Product & Quote

Technical Specifications

Parameter	Value
DC	4 to 20mA
Type	Hirschmann® Form A DIN 43650-A, IP65 /4X
Brand	ASHCROFT
Output	4 to 20mA DC
Series	A4
Accuracy	±0.50% of Full Scale
IP Rating	IP65
NEMA Rating	4X
Overpressure	1.5x Range
Product Type	Intrinsically Safe-Rated Transmitter
Safety Rating	Class III, Div 1 and 2
Burst Pressure	2x Range
Housing Material	Stainless Steel
Intrinsically Safe	Intrinsically Safe
Electrical Connection	Hirschmann® Form A DIN 43650-A
Pressure Type Measured	Gauge
Process Connection Type	NPT
Manufacturer Part Number	A4SBF0442D0100#
NIST Traceable Certificate	NIST-Traceable Calibration Certificate Included
