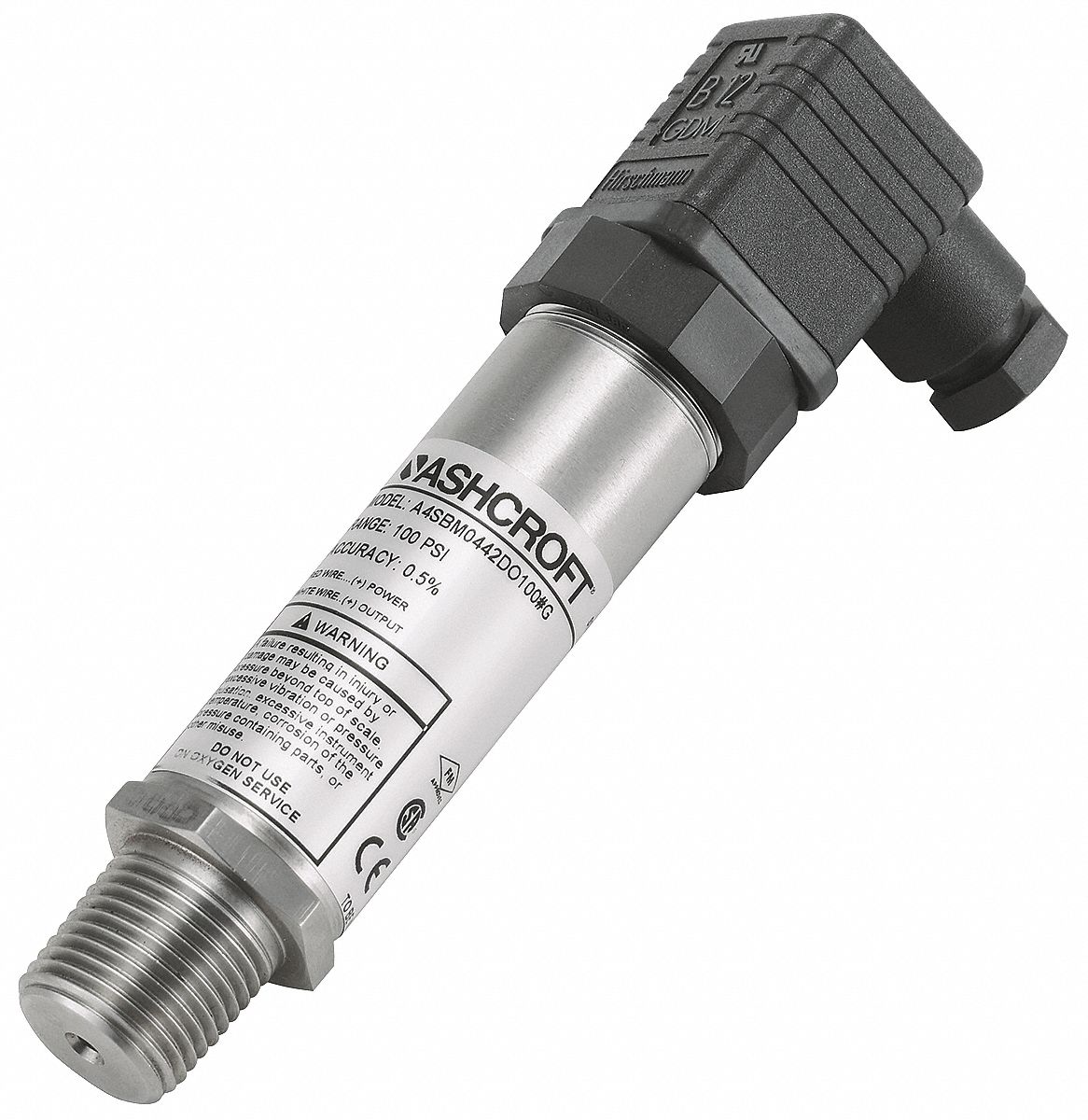

Ashcroft 3G-OTH-176554 — Technical Specifications
The ASHCROFT A4 Series Pressure Transmitter (0 psi to 15 psi) is an intrinsically safe-rated gauge transmitter with a 4 to 20mA DC output and ±0.50% of Full Scale accuracy. It features a stainless steel housing, IP65 and NEMA 4X ratings, a Hirschmann® Form A DIN 43650-A electrical connection, and an NPT process connection. The transmitter is rated Class II, Div 1 and 2, Group F, G, with overpressure of 1.5x range and burst pressure of 2x range, and includes a NIST-traceable calibration certificate.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 4 to 20mA |
| Type | Hirschmann® Form A DIN 43650-A, IP65 /4X, Gauge |
| Brand | ASHCROFT |
| Output | 4 to 20mA DC |
| Series | A4 |
| Accuracy | ±0.50% of Full Scale |
| IP Rating | IP65 |
| NEMA Rating | 4X |
| Overpressure | 1.5x Range |
| Product Type | Intrinsically Safe-Rated Transmitter |
| Safety Rating | Class II, Div 1 and 2, Group F, G |
| Burst Pressure | 2x Range |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Intrinsically Safe |
| Electrical Connection | Hirschmann® Form A DIN 43650-A |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | A4SBMO442DO15# |
| NIST Traceable Certificate | NIST-Traceable Calibration Certificate Included |
