Armstrong International 3G-OTH-72549 — Technical Specifications

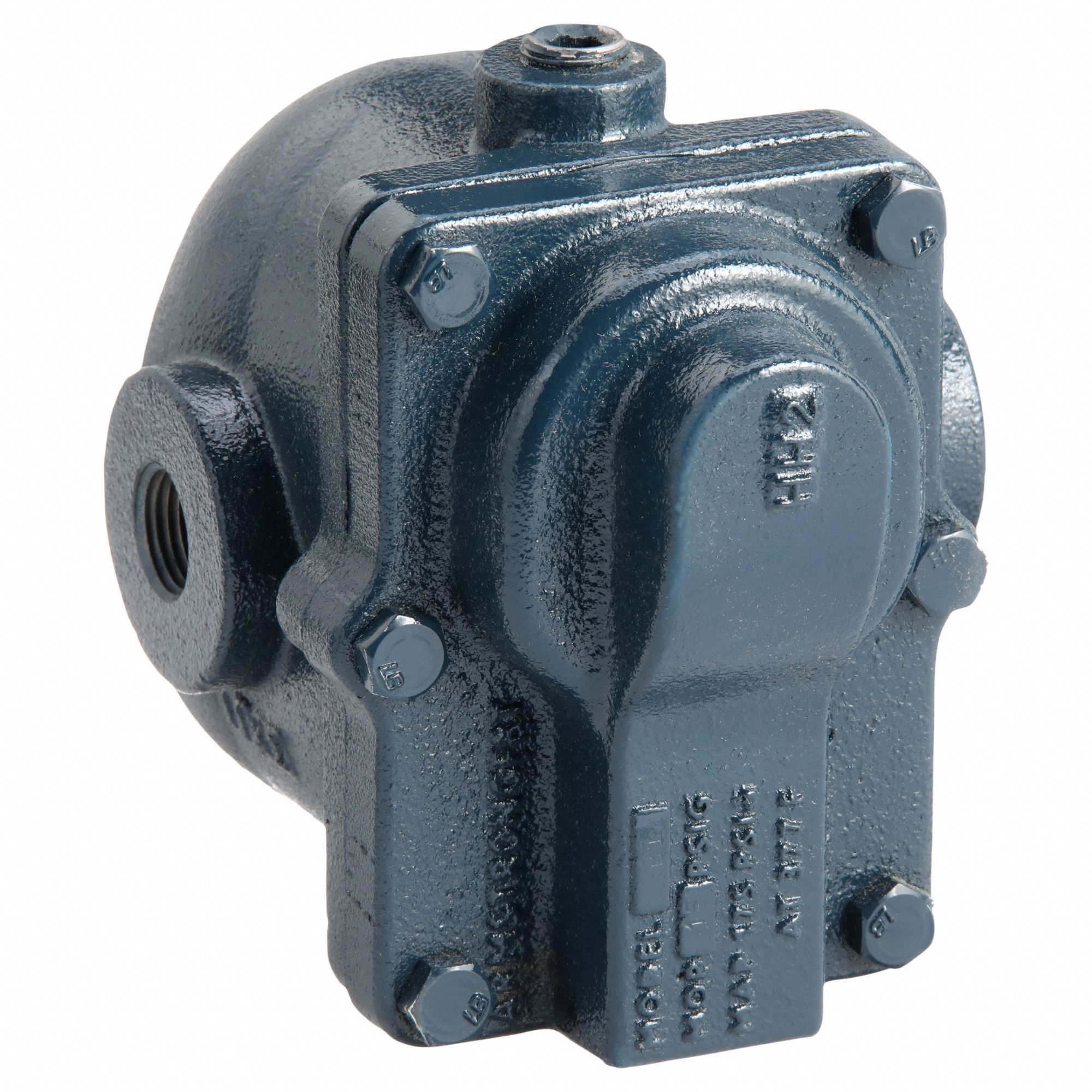

The ARMSTRONG INTERNATIONAL Steam Trap is a Cast Iron In-line Float & Thermostatic Steam Trap from the BI series. It features a 1/2 in FNPT connection, a maximum capacity of 1,200 lb/hr, a maximum pressure of 15 psi, and a maximum temperature of 353°F. The float is made of Stainless Steel, and the trap is designed for horizontal installation.
Technical Specifications
| Parameter | Value |
|---|---|
| FNPT | 1/2 in |
| Max. | 15 psi |
| Type | 1,200 lb/hr, In-line |
| Brand | ARMSTRONG INTERNATIONAL |
| Float Material | Stainless Steel |
| Manufacturer Series | BI |
| Installation Orientation | Horizontal |
| Manufacturer Part Number | 15BI2 |
