Armstrong International 3G-OTH-69773 — Technical Specifications

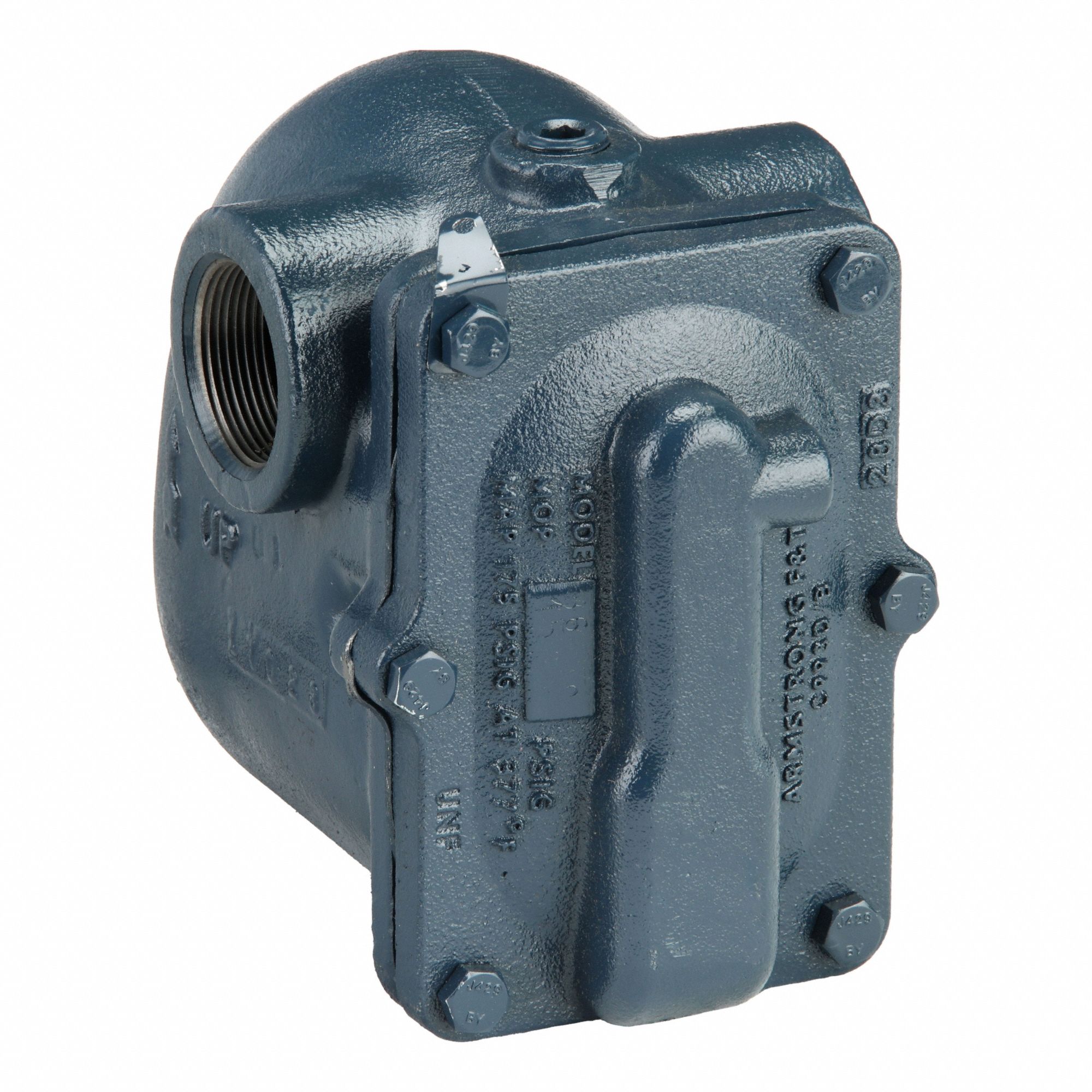

The ARMSTRONG INTERNATIONAL Cast Iron C-Pattern Float & Thermostatic Steam Trap (MPN 15B6) is a horizontal-installation steam trap with a 1 1/2 in FNPT connection, a maximum capacity of 3,100 lb/hr, a maximum pressure of 15 psi, and a maximum temperature of 377°F. It features a stainless steel float and is part of the Manufacturer Series B.
Technical Specifications
| Parameter | Value |
|---|---|
| FNPT | 1 1/2 in |
| Max. | 15 psi |
| Type | 3,100 lb/hr, C Pattern |
| Brand | ARMSTRONG INTERNATIONAL |
| Float Material | Stainless Steel |
| Manufacturer Series | B |
| Installation Orientation | Horizontal |
| Manufacturer Part Number | 15B6 |
