Armstrong International 3G-OTH-69747 — Technical Specifications

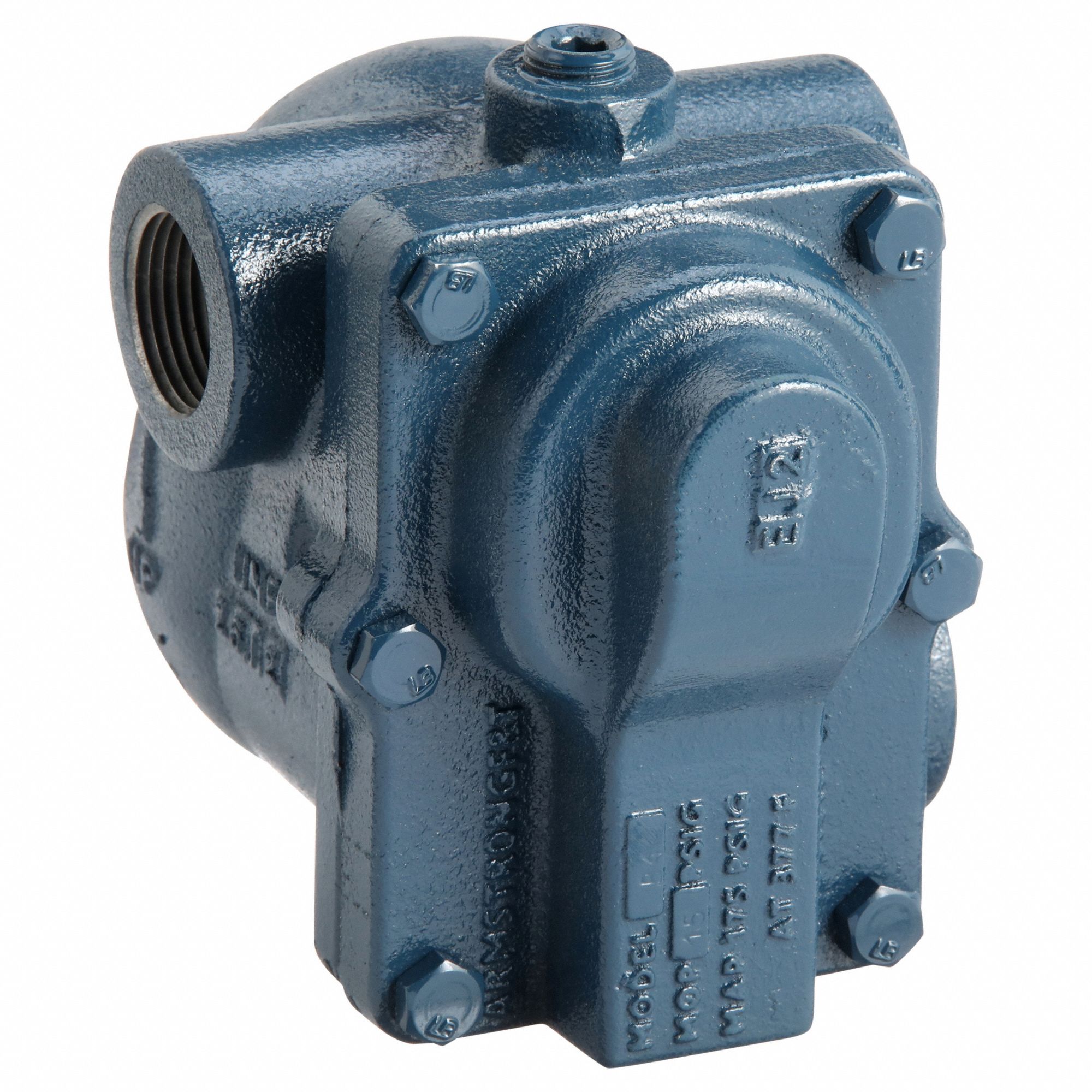

The ARMSTRONG INTERNATIONAL Cast Iron C-Pattern Float & Thermostatic Steam Trap (MPN 15B4) is a horizontal-installation steam trap with a stainless steel float. It features a 1 in FNPT connection, a maximum capacity of 2,100 lb/hr, a maximum pressure of 15 psi, and a maximum temperature of 377°F, and is part of Manufacturer Series B.
Technical Specifications
| Parameter | Value |
|---|---|
| FNPT | 1 in |
| Max. | 15 psi |
| Type | 2,100 lb/hr, C Pattern |
| Brand | ARMSTRONG INTERNATIONAL |
| Float Material | Stainless Steel |
| Manufacturer Series | B |
| Installation Orientation | Horizontal |
| Manufacturer Part Number | 15B4 |
