Armstrong International 3G-OTH-70463 — Technical Specifications

Name: Armstrong International 3G-OTH-70463 Steam Trap: Cast Iron, 3/4 in FNPT, 1,000 lb/hr, 30 psi Max., 450°F Max., Strainer Included (MPN 881-075-030). Key specifications — Installation Orientation: Horizontal; Brand: ARMSTRONG INTERNATIONAL; Configuration: In-line.
Brand: Armstrong International

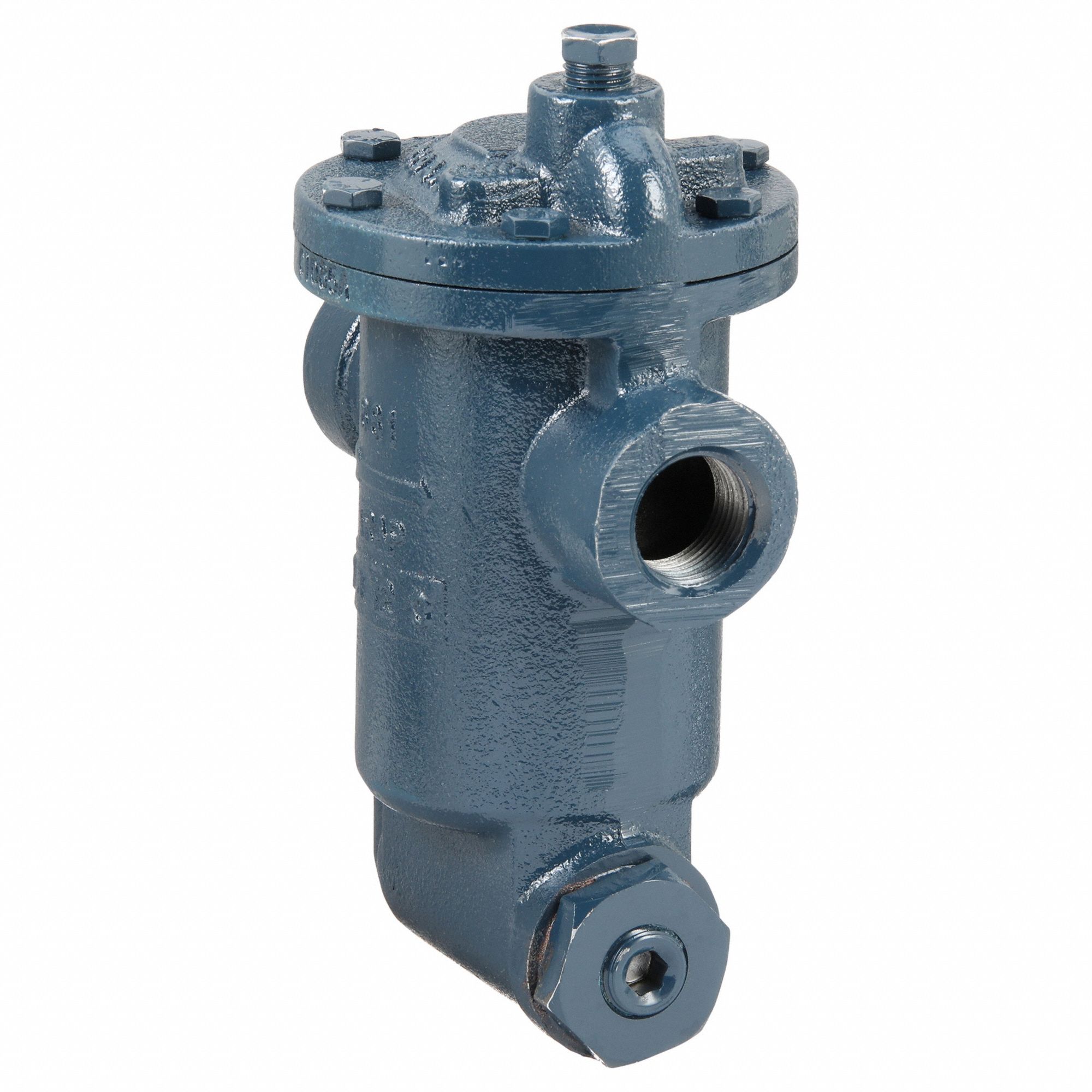

The ARMSTRONG INTERNATIONAL 36Y226 is a cast iron standard inverted-bucket steam trap with a 3/4 in FNPT connection, rated for 1,000 lb/hr capacity, 30 psi maximum pressure, and 450°F maximum temperature. It features an in-line configuration for horizontal installation and includes a built-in strainer. This product is identified by manufacturer part number 881-075-030.

View Product & Quote

Technical Specifications

Parameter	Value
FNPT	3/4 in
Max.	30 psi
Type	1,000 lb/hr, Strainer Included
Brand	ARMSTRONG INTERNATIONAL
Configuration	In-line
Installation Orientation	Horizontal
Manufacturer Part Number	881-075-030
