Armstrong International 3G-OTH-71148 — Technical Specifications

Name: Armstrong International 3G-OTH-71148 Steam Trap: Cast Iron, 2 in FNPT, 7,000 lb/hr, 250 psi Max., 450°F Max., Strainer Not Included (MPN 815-200-250). Key specifications — Installation Orientation: Horizontal; Brand: ARMSTRONG INTERNATIONAL; Configuration: In-line.
Brand: Armstrong International

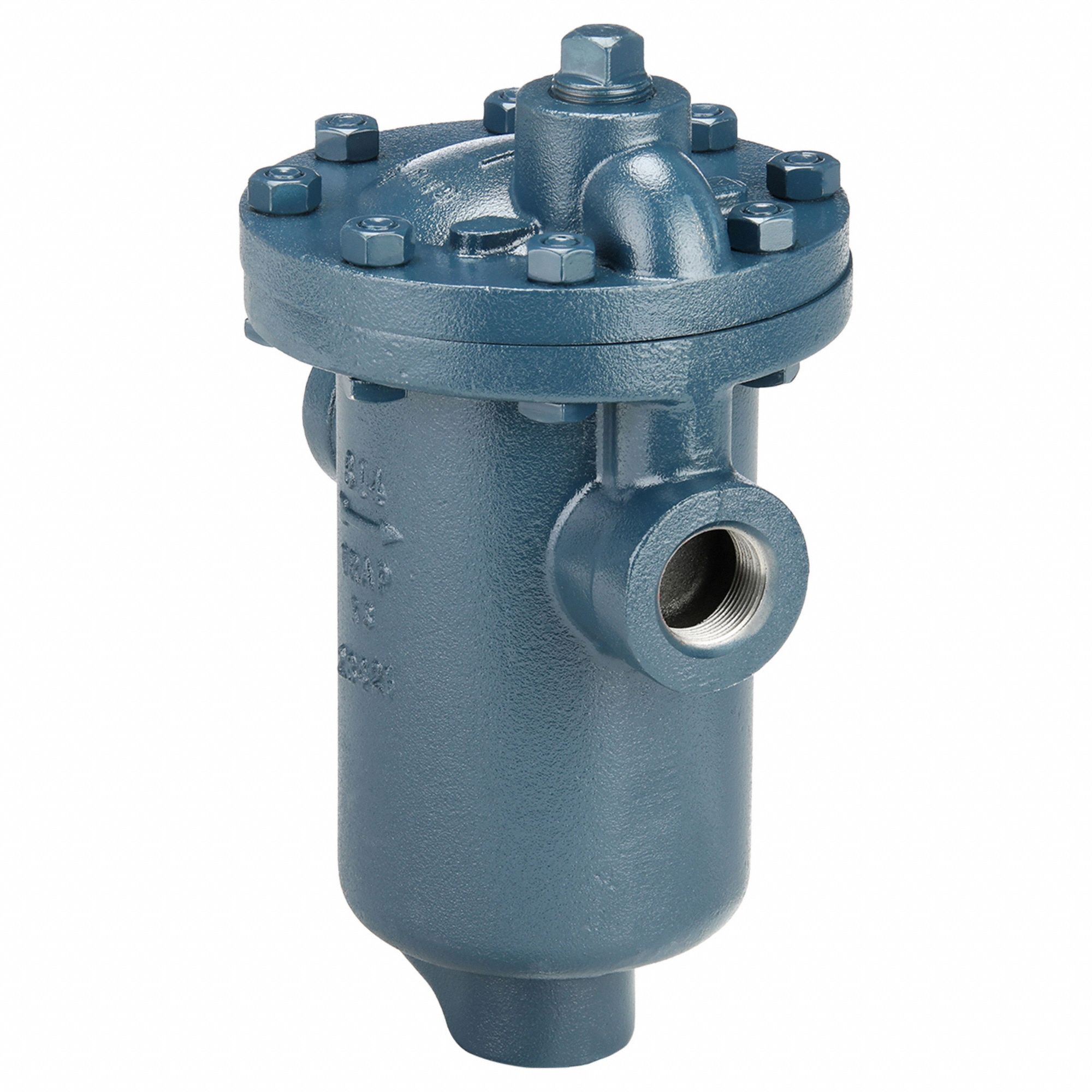

The ARMSTRONG INTERNATIONAL Standard Inverted-Bucket Steam Trap is a cast-iron, in-line configured steam trap with a 2-inch FNPT connection. It is rated for a maximum capacity of 7,000 lb/hr, a maximum pressure of 250 psi, and a maximum temperature of 450°F. This unit is designed for horizontal installation and does not include a strainer.

View Product & Quote

Technical Specifications

Parameter	Value
FNPT	2 in
Max.	250 psi
Type	7,000 lb/hr, Strainer Not Included
Brand	ARMSTRONG INTERNATIONAL
Configuration	In-line
Installation Orientation	Horizontal
Manufacturer Part Number	815-200-250
