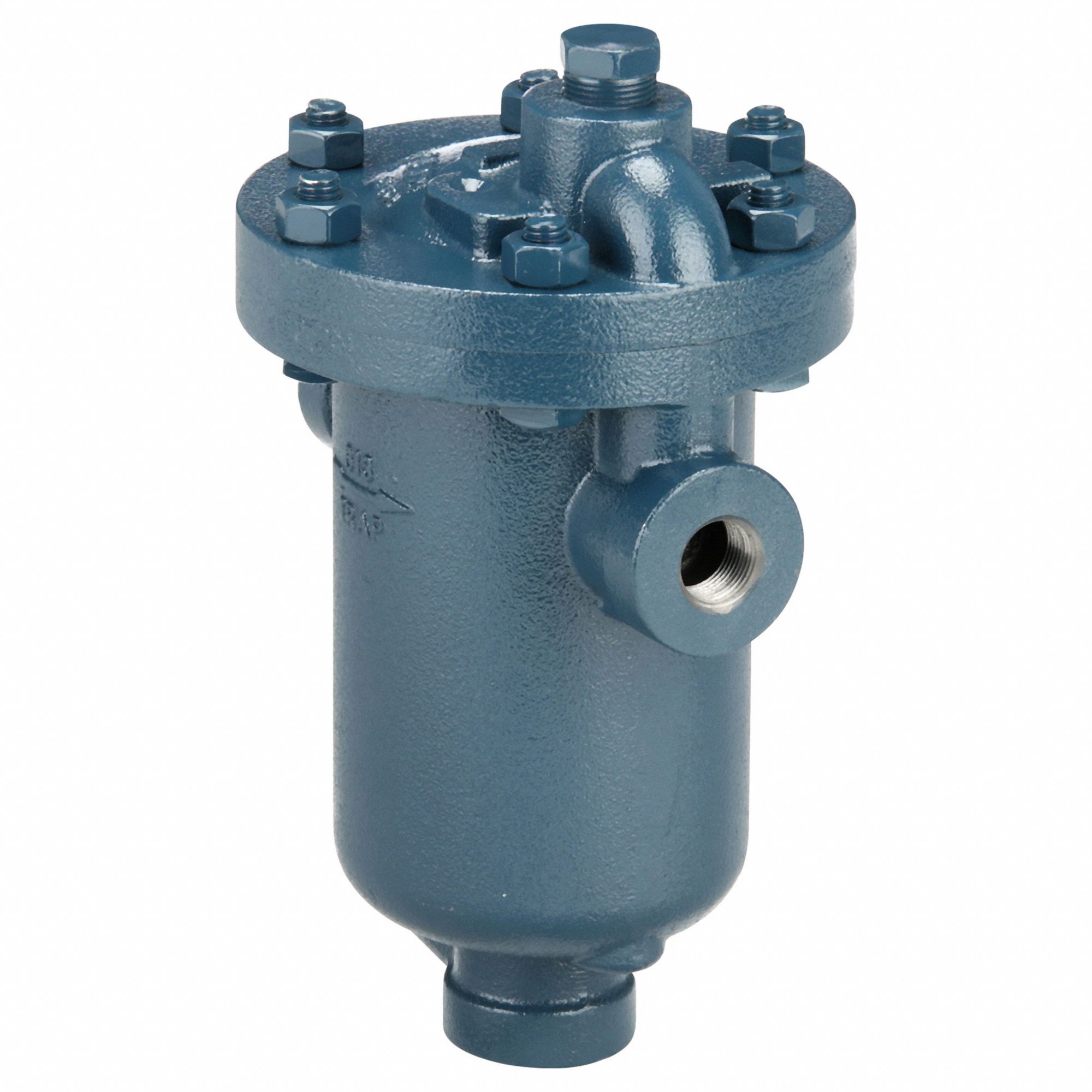

Armstrong International 3G-OTH-70729 — Technical Specifications

Name: Armstrong International 3G-OTH-70729 Steam Trap: Cast Iron, 3/4 in FNPT, 4,000 lb/hr, 125 psi Max., 450°F Max., Strainer Not Included (MPN 813-075-125). Key specifications — Installation Orientation: Horizontal; Brand: ARMSTRONG INTERNATIONAL; Configuration: In-line.
Brand: Armstrong International

The ARMSTRONG INTERNATIONAL Standard Inverted-Bucket Steam Trap is a cast-iron, in-line steam trap with a 3/4 in FNPT connection, rated for 4,000 lb/hr capacity, 125 psi maximum pressure, and 450°F maximum temperature. Designed for horizontal installation, this model (MPN 813-075-125) does not include a strainer.

View Product & Quote

Technical Specifications

Parameter	Value
FNPT	3/4 in
Max.	125 psi
Type	4,000 lb/hr, Strainer Not Included
Brand	ARMSTRONG INTERNATIONAL
Configuration	In-line
Installation Orientation	Horizontal
Manufacturer Part Number	813-075-125
