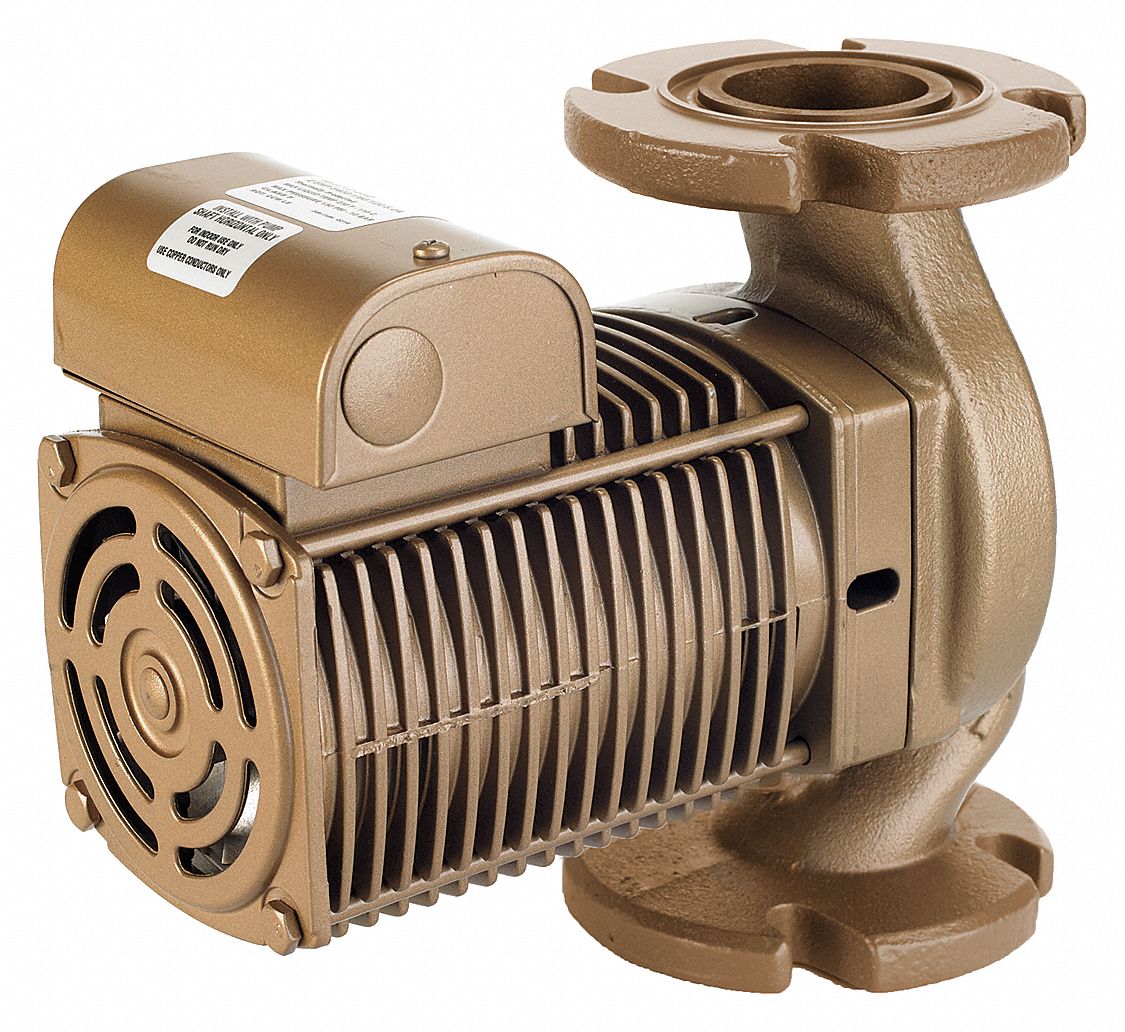

Armstrong 3G-OTH-83489 — Technical Specifications

Name: Armstrong 3G-OTH-83489 Circulating Pump: 2/5 hp HP, 240V AC, Bronze, 1, 128 gpm, 22 ft Max. Head, 8 1/2 in Face to Face (MPN 182212-605). Key specifications — Nameplate Voltage: 240V AC; Connection Type: Flange; Brand: ARMSTRONG; Includes Volute: No Volute Included; System Type: Potable Water.
Brand: Armstrong

The ARMSTRONG Circulating Pump: 2/5 hp HP is a general-purpose inline circulator pump designed for potable water systems. It features a 240V AC nameplate voltage, flange connections, and a bronze construction. Key specifications include a flow rate of 128 gpm, a maximum head of 22 ft, and an 8 1/2 in face-to-face dimension (MPN 182212-605). This unit does not include a volute.

View Product & Quote

Technical Specifications

Parameter	Value
AC	240V
Type	Bronze, 1, 128 gpm, 8 1/2 in Face to Face
Brand	ARMSTRONG
Max. Head	22 ft
System Type	Potable Water
Connection Type	Flange
Includes Volute	No Volute Included
Nameplate Voltage	240V AC
Manufacturer Part Number	182212-605
