Approved Vendor 3G-OTH-116614 — Technical Specifications

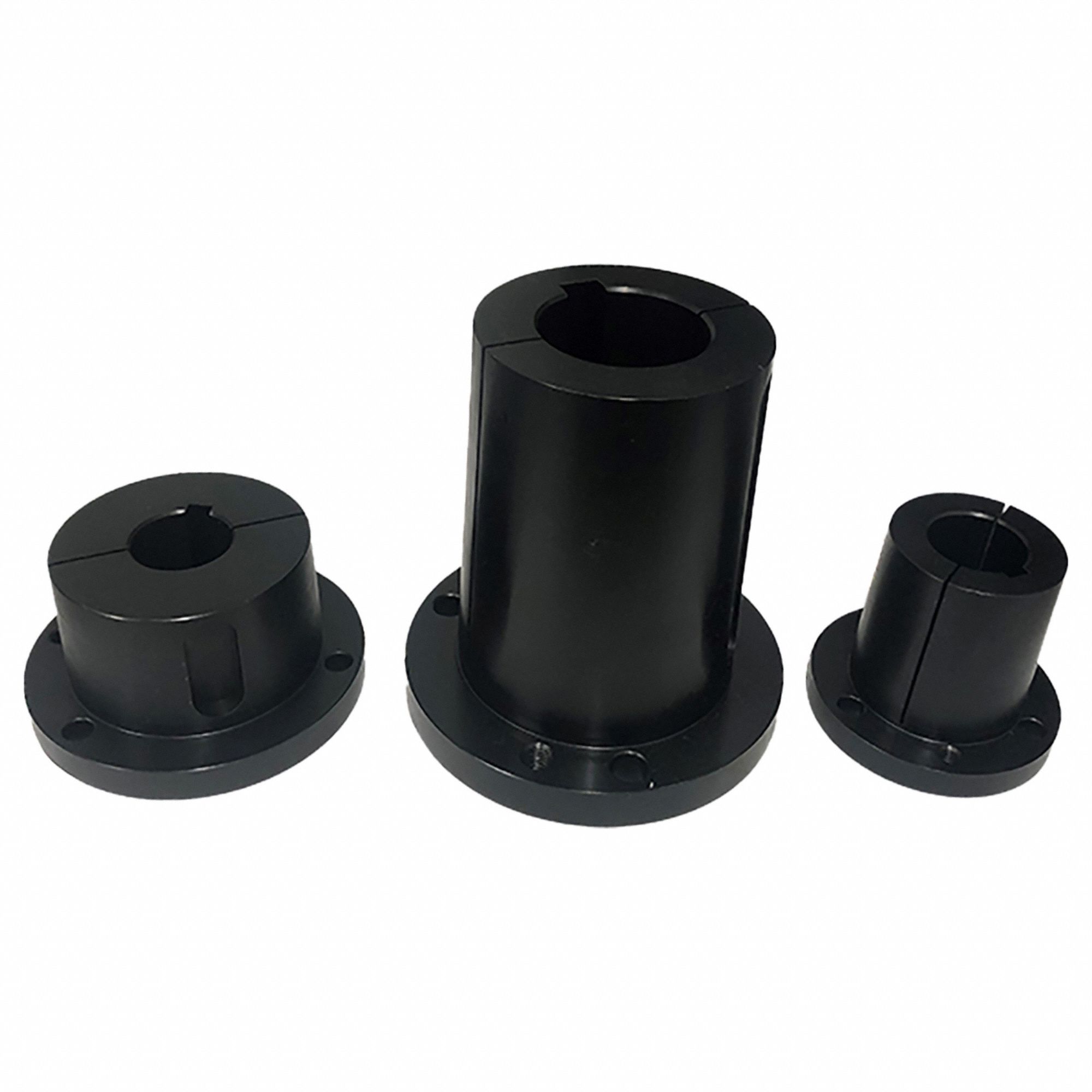

The APPROVED VENDOR Split Taper Bushing, model Q2, is a split taper bushing with a 3/4 in per ft taper. It features a 1 1/4 in bore diameter and a 3.38 in bolt circle diameter, in inch dimensions. This component is designed for mounting and securing pulleys, sprockets, and other drive components onto shafts.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Inch |
| Brand | APPROVED VENDOR |
| Taper | 3/4 in Per ft |
| Bore Dia | 1 1/4 in |
| Bolt Circle Dia | 3.38 in |
| Manufacturer Part Number | Q2X1-1/4 |
