Approved Vendor 3G-OTH-118547 — Technical Specifications

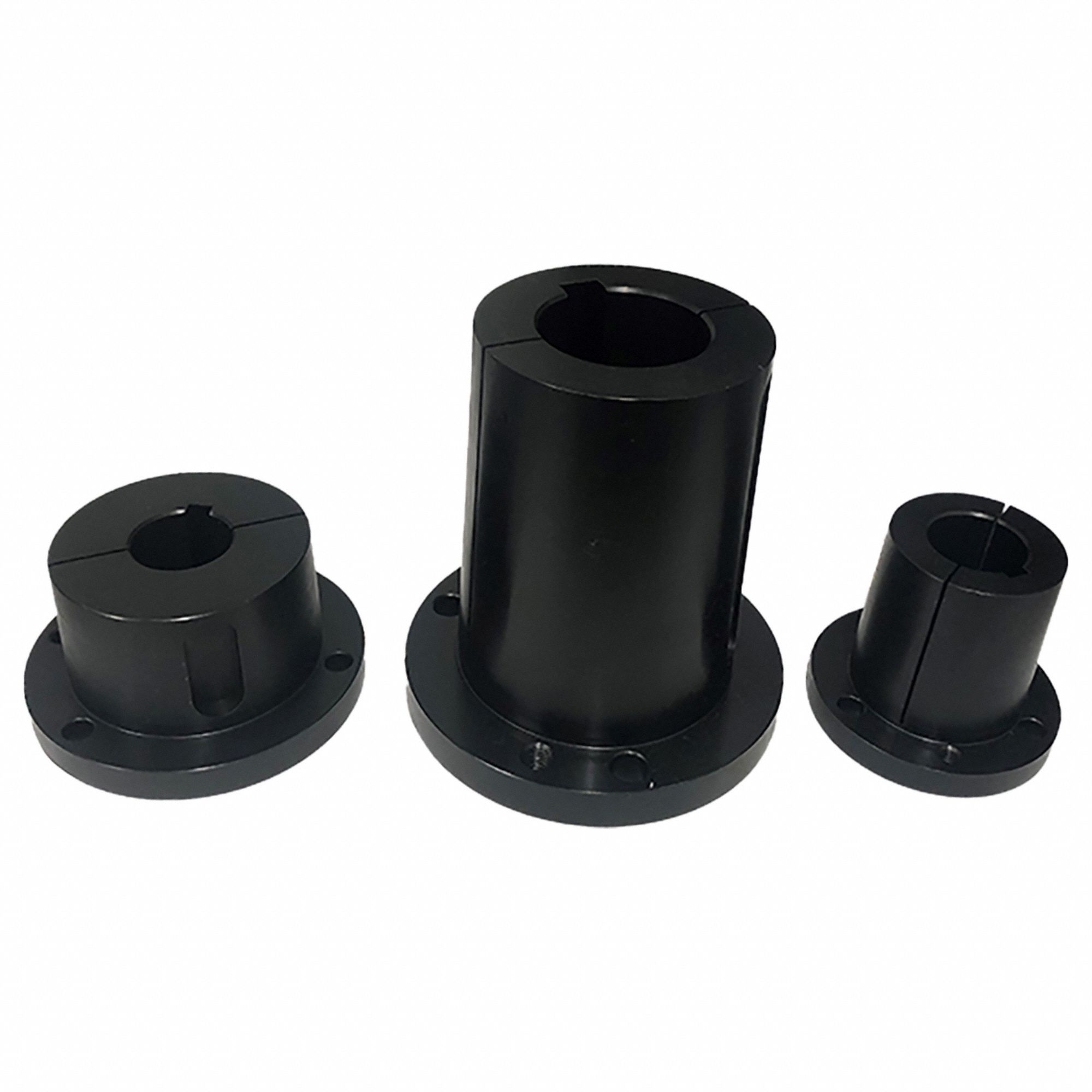

The APPROVED VENDOR Split Taper Bushing: B is a split taper bushing with a 55 mm bore diameter, 3.13 in bolt circle diameter, and 1.938 in overall length. It features a taper of 3/4 in per ft and is identified by manufacturer part number BX55MM.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | APPROVED VENDOR |
| Taper | 3/4 in Per ft |
| Bore Dia | 55 mm |
| Overall Lg | 1.938 in |
| Bolt Circle Dia | 3.13 in |
| Manufacturer Part Number | BX55MM |
