Approved Vendor 3G-OTH-534078 — Technical Specifications

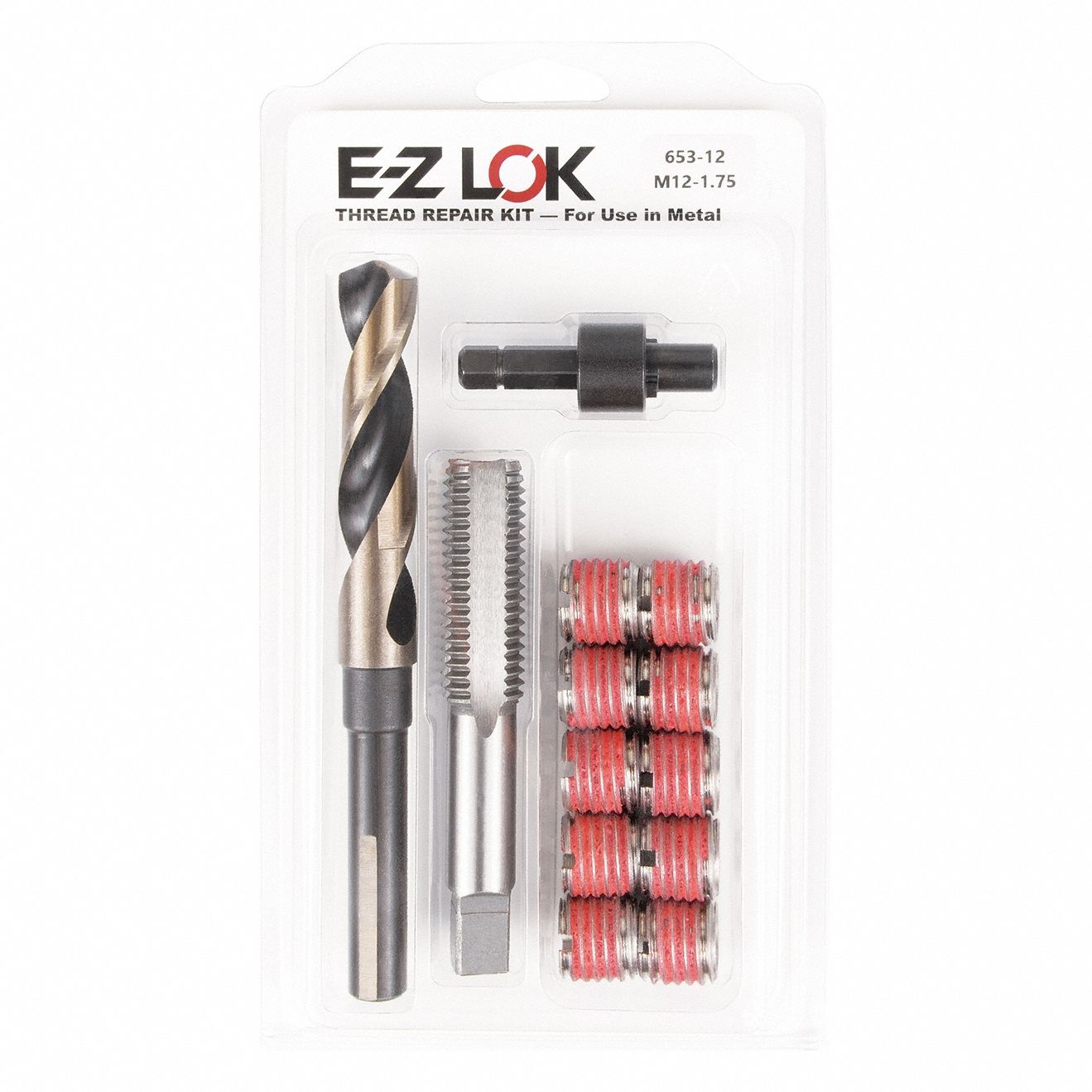

The APPROVED VENDOR Self Locking Thread Insert (Std Wall, MPN EZ-653-12) is a standard-wall insert with M12-1.75 internal thread size and 3/4"-10 external thread size, coarse thread type, and inch/metric system of measurement. It requires a 21/32 drill bit and is compatible with a 3/4"-10 tap, with internal thread fit 6H and external thread fit 2A.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | M12-1.75 Int Thrd Sz |
| Wall Type | Standard Wall |
| Ext Thrd Sz | 3/4"-10 |
| Thread Type | Coarse |
| Drill Bit Size | 21/32 |
| Compatible Tap Size | 3/4"-10 |
| External Thread Fit | 2A |
| Internal Thread Fit | 6H |
| System Of Measurement | Inch/Metric |
| Manufacturer Part Number | EZ-653-12 |
