Approved Vendor 3G-OTH-534022 — Technical Specifications

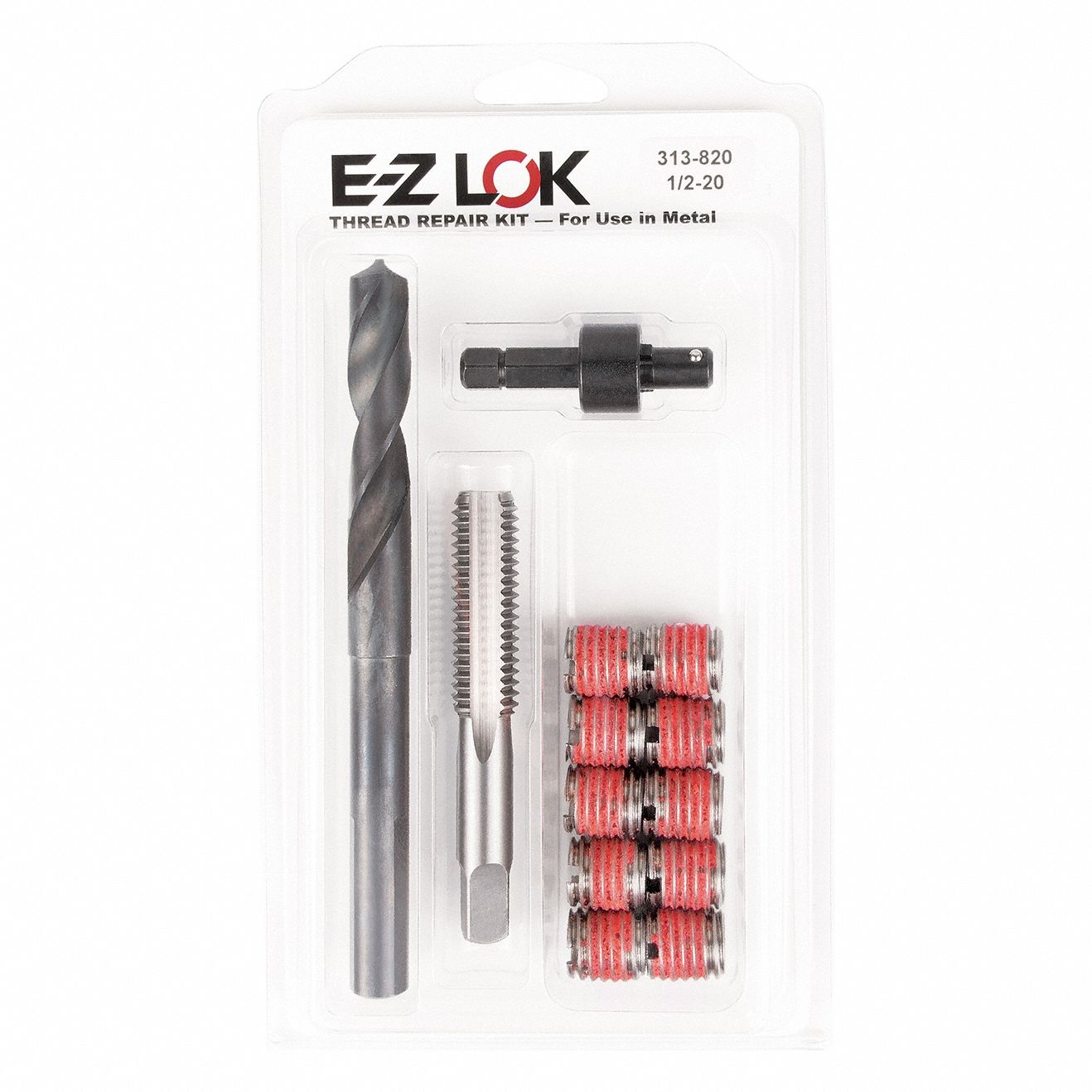

The APPROVED VENDOR Self Locking Thread Insert: Thin Wall (SKU 807TK1, MPN EZ-313-820) is a thin-wall insert with a 1/2"-20 internal thread size and a 5/8"-18 external thread size, both fine thread, inch system. It requires a 37/64 drill bit and a 5/8"-18 compatible tap, with external thread fit 2A and internal thread fit 2B.
Technical Specifications
| Parameter | Value |
|---|---|
| Wall Type | Thin Wall |
| Ext Thrd Sz | 5/8"-18 |
| Int Thrd Sz | 1/2"-20 |
| Thread Type | Fine |
| Drill Bit Size | 37/64 |
| Compatible Tap Size | 5/8"-18 |
| External Thread Fit | 2A |
| Internal Thread Fit | 2B |
| System Of Measurement | Inch |
| Manufacturer Part Number | EZ-313-820 |
