Approved Vendor 3G-OTH-534190 — Technical Specifications

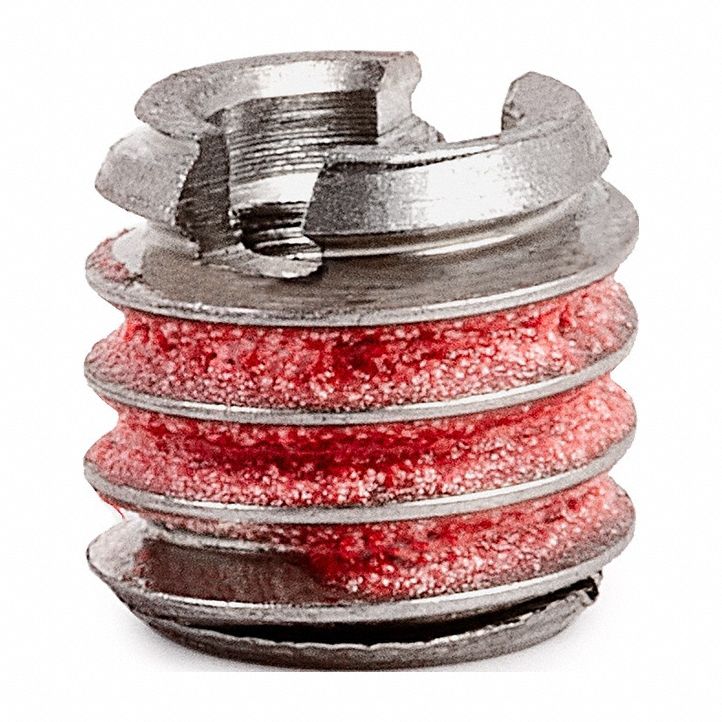

The APPROVED VENDOR Self Locking Thread Insert is a heavy wall, standard wall insert with M4-0.70 internal thread size and M8-1.25 external thread size (MPN 416-4). It features coarse thread type, 6.9mm drill bit size, compatible tap size M8-1.25, external thread fit 6G, and internal thread fit 6H in metric measurement.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | M4-0.70 Int Thrd Sz, M8-1.25 Ext Thrd Sz |
| Wall Type | Standard Wall |
| Thread Type | Coarse |
| Drill Bit Size | 6.9mm |
| Compatible Tap Size | M8-1.25 |
| External Thread Fit | 6G |
| Internal Thread Fit | 6H |
| System Of Measurement | Metric |
| Manufacturer Part Number | 416-4 |
