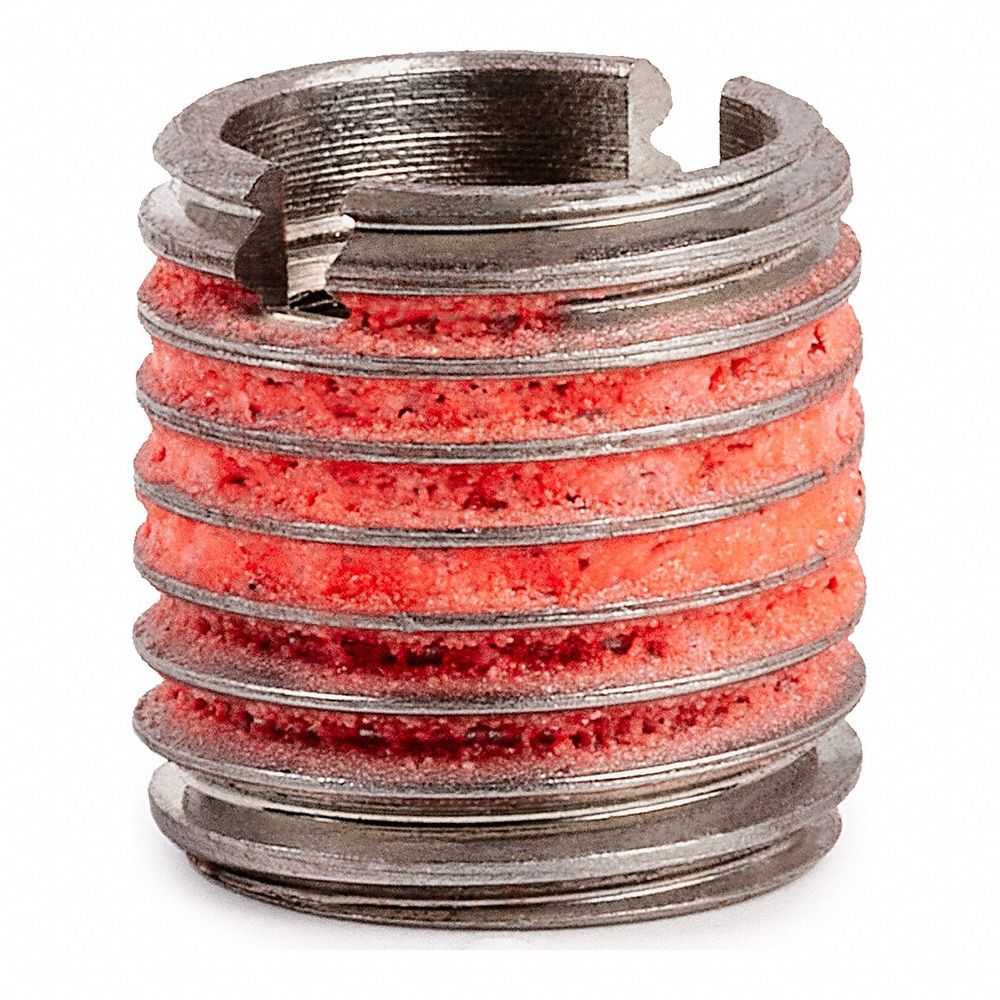

Approved Vendor 3G-OTH-528421 — Technical Specifications
The APPROVED VENDOR Self Locking Thread Insert is a thin-wall, inch-system insert with a 1/2"-13 internal coarse thread and 5/8" overall length. Supplied in a 5-pack (MPN 313-8-PK5), it requires a 37/64 drill bit and a 5/8"-18 tap, with external thread fit 2A and internal thread fit 2B.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 5 PK |
| Wall Type | Thin Wall |
| Overall Lg | 5/8 in |
| Int Thrd Sz | 1/2"-13 |
| Thread Type | Coarse |
| Drill Bit Size | 37/64 |
| Compatible Tap Size | 5/8"-18 |
| External Thread Fit | 2A |
| Internal Thread Fit | 2B |
| System Of Measurement | Inch |
| Manufacturer Part Number | 313-8-PK5 |
