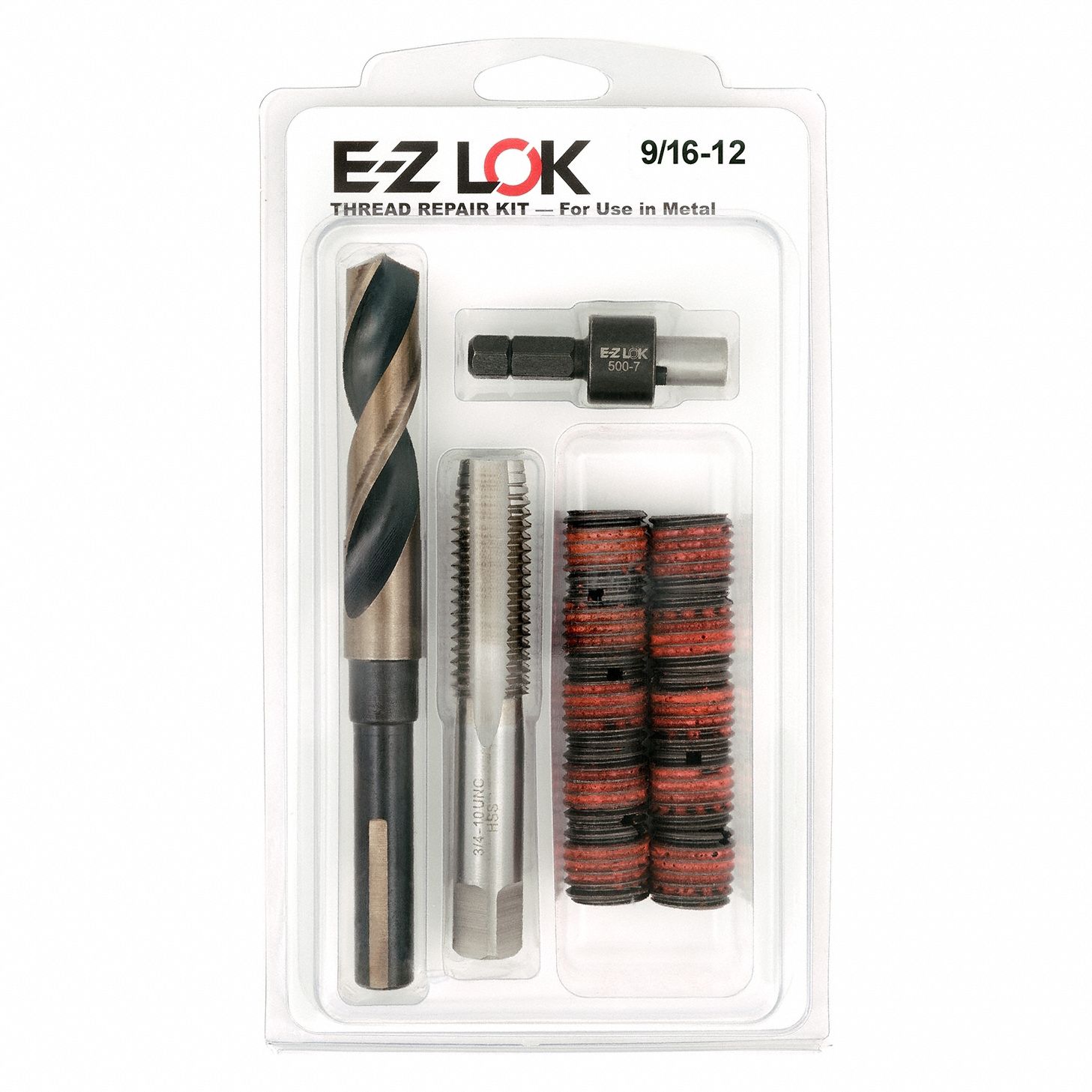

Approved Vendor 3G-OTH-534006 — Technical Specifications
The APPROVED VENDOR Self Locking Thread Insert is a standard-wall, inch-system insert with a 9/16"-12 internal thread size and a 3/4"-10 external thread size (coarse thread type, 2A external fit, 2B internal fit). It requires a 21/32 drill bit and a 3/4"-10 compatible tap size (MPN EZ-329-9).
Technical Specifications
| Parameter | Value |
|---|---|
| Wall Type | Standard Wall |
| Ext Thrd Sz | 3/4"-10 |
| Int Thrd Sz | 9/16"-12 |
| Thread Type | Coarse |
| Drill Bit Size | 21/32 |
| Compatible Tap Size | 3/4"-10 |
| External Thread Fit | 2A |
| Internal Thread Fit | 2B |
| System Of Measurement | Inch |
| Manufacturer Part Number | EZ-329-9 |
