Approved Vendor 3G-OTH-450054 — Technical Specifications

Name: Approved Vendor 3G-OTH-450054 APPROVED VENDOR Float Valve Assembly: For Water Media, Angle Valve Body, Cylindrical, 1 in Pipe Size (MPN AHFSS100). Key specifications — Mounting: Horizontal Piping; Arm Adjustability: Adjustable; Connection Gender - Side 1: Female; Connection Gender - Side 2: Female; Brand: APPROVED VENDOR; Connection Type - Side 1: NPT; Connection Type - Side 2: NPT; Flow Rate: 75 gpm @ 60 psi.
Brand: Approved Vendor

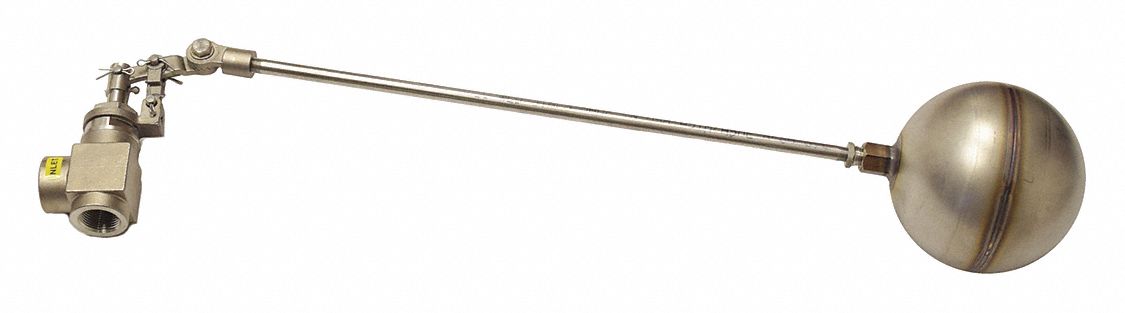

The APPROVED VENDOR Float Valve Assembly (MPN AHFSS100) is a general service float valve assembly for water media, featuring an angle valve body and a 1 in pipe size. It is designed for horizontal piping with adjustable arm, includes float and rod, and has FNPT inlet and outlet connections. The assembly delivers a flow rate of 75 gpm @ 60 psi.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Angle Valve Body, Cylindrical
Brand	APPROVED VENDOR
Mounting	Horizontal Piping
Flow Rate	75 gpm @ 60 psi
For Media	Water
Pipe Size	1 in
Rod Thread	1/4" NPT
Float Valve Type	Float Valve Assembly (Rod & Float Included)
Valve Body Style	Angle
Arm Adjustability	Adjustable
Inlet Connection Type	FNPT
Includes Float And Rod	Float and Rod Included
Outlet Connection Type	FNPT
Connection Type - Side 1	NPT
Connection Type - Side 2	NPT
Manufacturer Part Number	AHFSS100
Connection Gender - Side 1	Female
Connection Gender - Side 2	Female
