Approved Vendor 3G-OTH-450073 — Technical Specifications

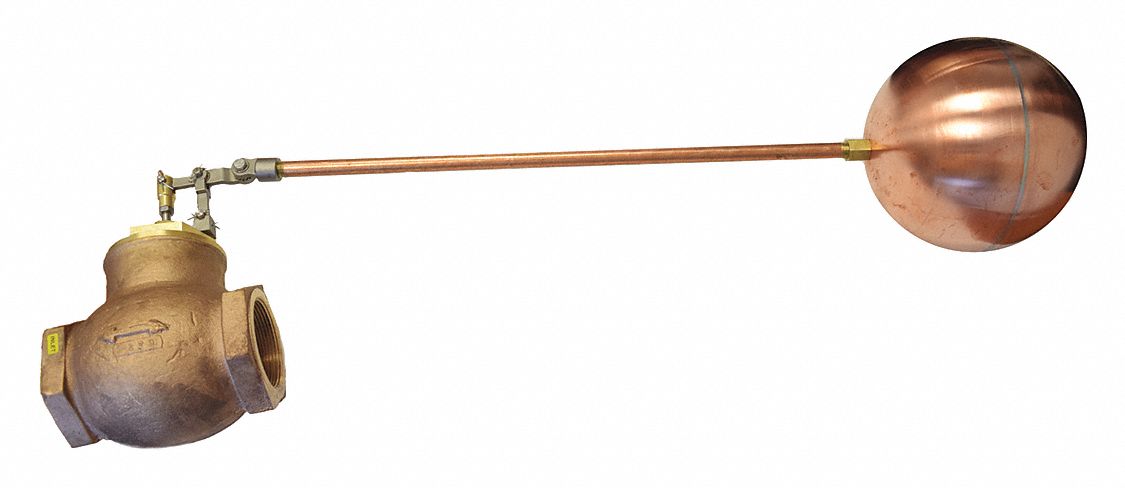

The APPROVED VENDOR Float Valve Assembly (MPN GHF200) is a general service float valve assembly for water media, featuring a straight valve body and adjustable arm. It is designed for horizontal piping with FNPT inlet and outlet connections, and includes a float and rod. The assembly delivers a flow rate of 175 gpm @ 60 psi with a 1/4" NPT rod thread.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Straight Valve Body, Cylindrical, Bronze, NPT |
| Brand | APPROVED VENDOR |
| Mounting | Horizontal Piping |
| Flow Rate | 175 gpm @ 60 psi |
| For Media | Water |
| Rod Thread | 1/4" NPT |
| Float Valve Type | Float Valve Assembly (Rod & Float Included) |
| Valve Body Style | Straight |
| Arm Adjustability | Adjustable |
| Inlet Connection Type | FNPT |
| Includes Float And Rod | Float and Rod Included |
| Outlet Connection Type | FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Manufacturer Part Number | GHF200 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
