Approved Vendor 3G-OTH-450096 — Technical Specifications

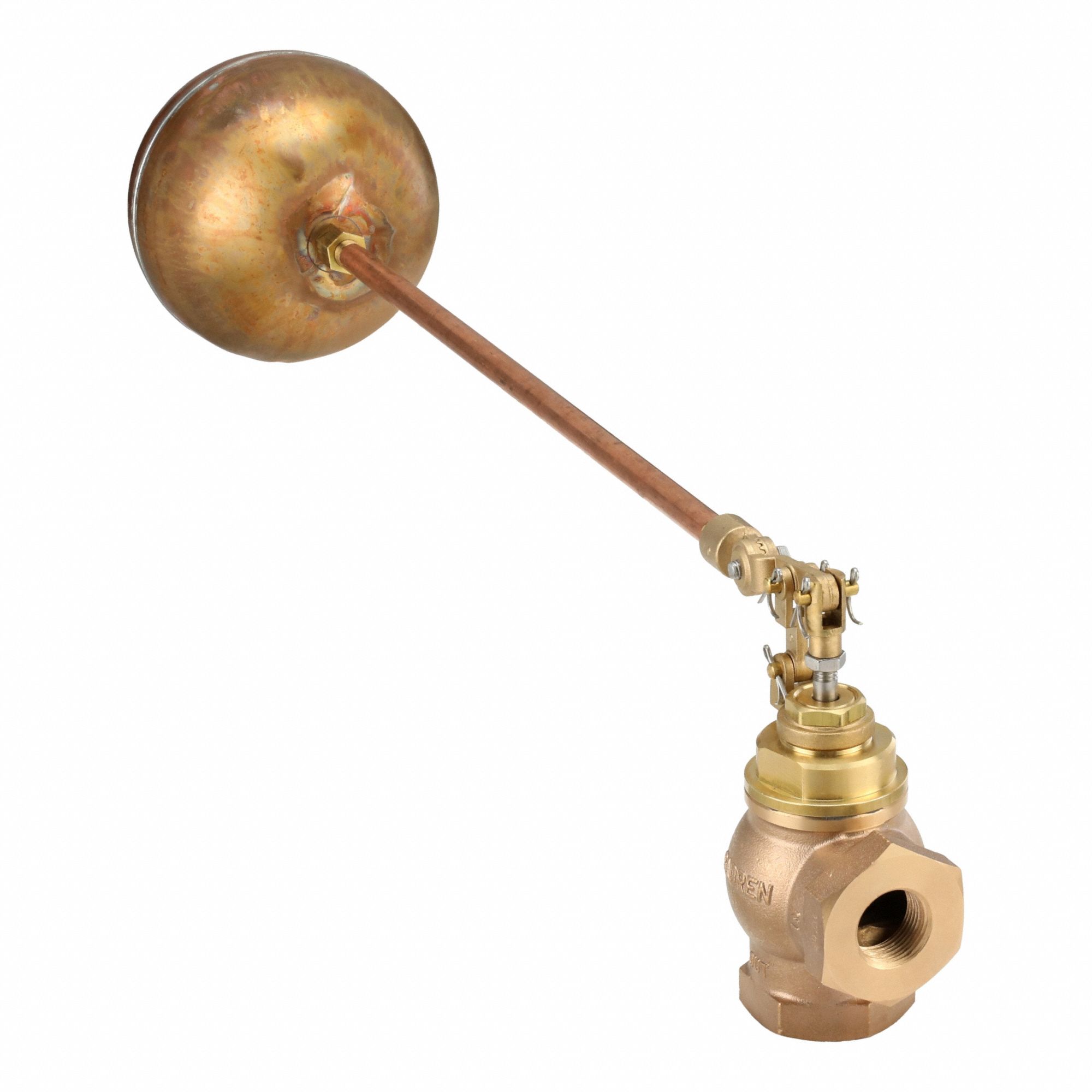

The APPROVED VENDOR Float Valve Assembly (MPN AHF100) is a general service float valve assembly for water media, featuring an angle valve body and a cylindrical bronze float with rod included. It is designed for horizontal piping with adjustable arm and 1/4" NPT rod thread, offering a flow rate of 75 gpm @ 60 psi. The valve has FNPT inlet and outlet connections (NPT, female) and is supplied by APPROVED VENDOR.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Angle Valve Body, Cylindrical, Bronze, FNPT |
| Brand | APPROVED VENDOR |
| Mounting | Horizontal Piping |
| Flow Rate | 75 gpm @ 60 psi |
| For Media | Water |
| Rod Thread | 1/4" NPT |
| Float Valve Type | Float Valve Assembly (Rod & Float Included) |
| Valve Body Style | Angle |
| Arm Adjustability | Adjustable |
| Inlet Connection Type | FNPT |
| Includes Float And Rod | Float and Rod Included |
| Outlet Connection Type | FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Manufacturer Part Number | AHF100 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
