Appleton Electric 3G-OTH-05695 — Technical Specifications

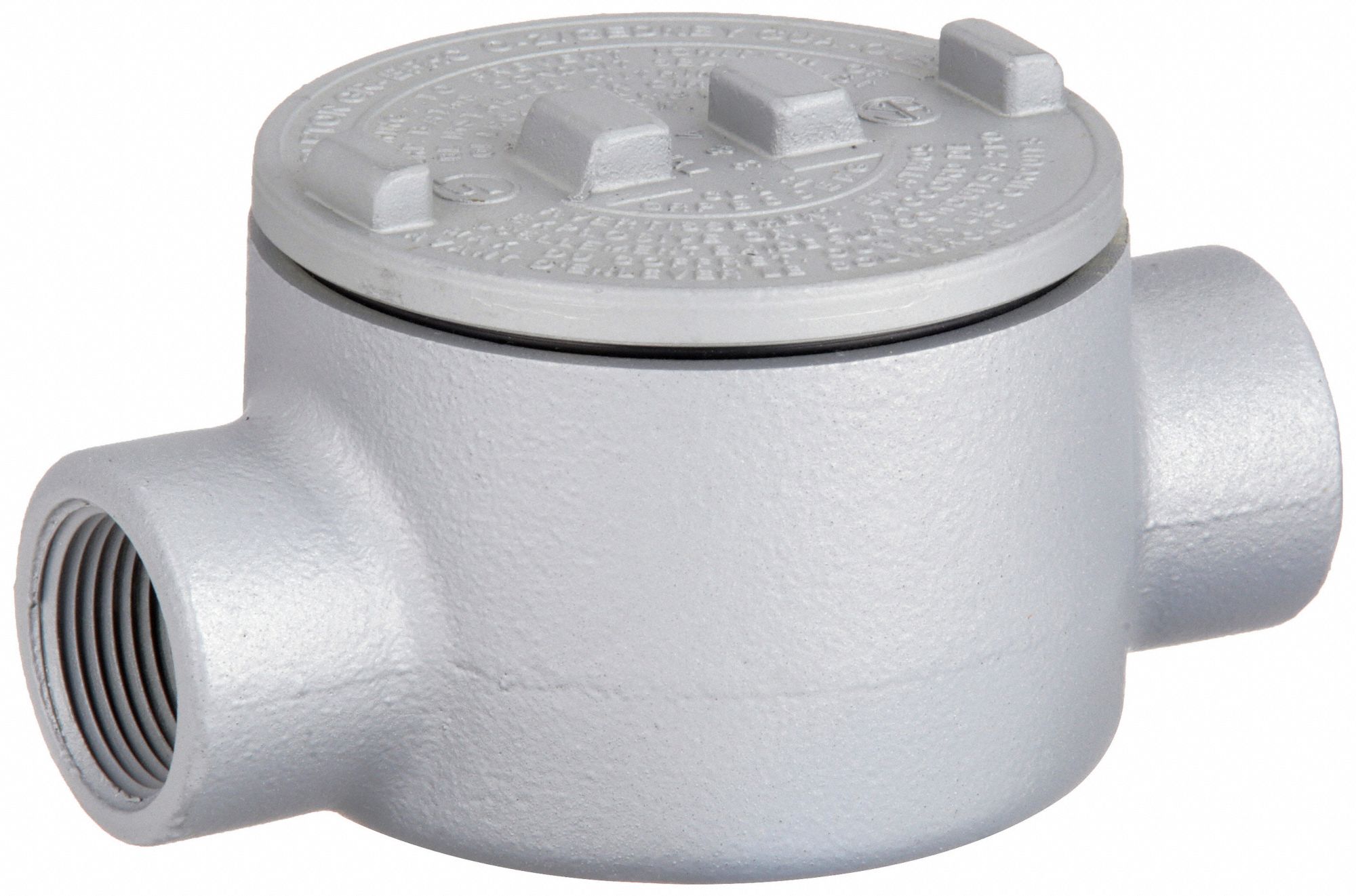

The Appleton Electric GRC150 is a C round body straight-type conduit outlet body made of iron with a triple coat epoxy coating. It features a 1-1/2 in trade size, threaded female hubs, and a 72 cu in body capacity, and includes a cover and O-ring. This UL Listed unit is suitable for hazardous locations, including Class I, Division 1 and 2, Groups B, C, D, Class II, Division 1 and 2, Groups E, F, G, and Class III, and is designed for use with threaded IMC.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | GR, C Body, 72 cu in Body Capacity |
| Brand | APPLETON ELECTRIC |
| Finish | Triple Coat Epoxy Coating |
| Series | For Standard Body |
| Includes | O-ring |
| Material | Iron |
| Back Type | Round |
| Body Type | Conduit Outlet Body |
| Hub Style | Threaded |
| Standards | UL Listed for Class I, Division 1 and 2, Groups B, C, D, Class II, Division 1 and 2, Groups E, F, G, and Class III |
| Body Style | C |
| Trade Size | 1 1/2 in |
| For Use With | Threaded IMC |
| Thread Gender | Female |
| Cover Included | Yes |
| Connection Type | Threaded |
| Hazardous Location | Yes |
| Manufacturer Part Number | GRC150 |
| Compatible Conduit Trade Size | 1-1/2 in |
