Appleton Electric 3G-OTH-05843 — Technical Specifications

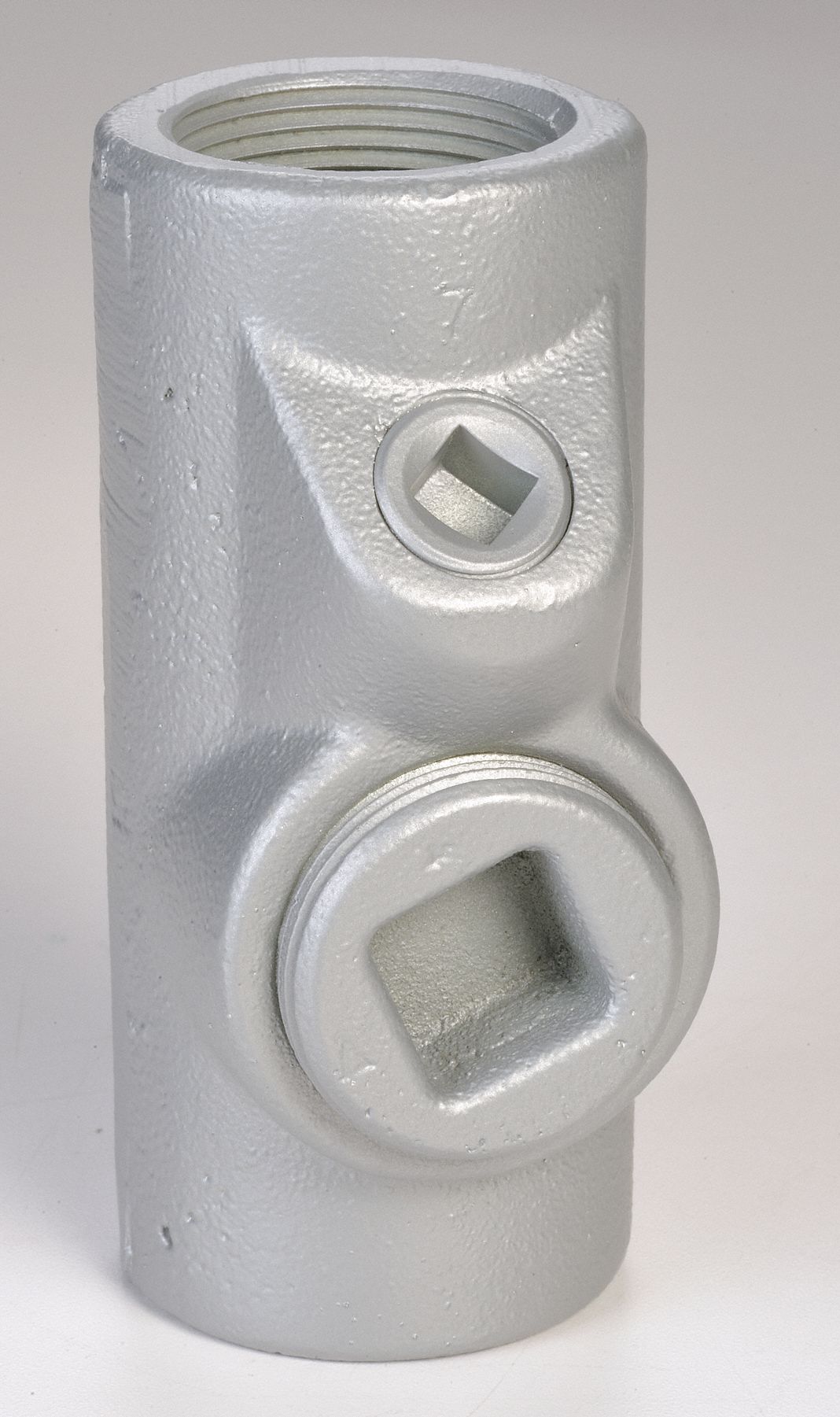

The APPLETON ELECTRIC EYF-125AL is a vertical and horizontal sealing fitting with a 25% fill rating, constructed from powder-coated aluminum. It features 1-1/4 in FNPT female-to-female threaded connections and is rated for Class II, Division 1 and 2, Groups E, F, G hazardous locations, complying with CSA C22.2 No 30 standards.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | APPLETON ELECTRIC |
| Finish | Powder Coated |
| Material | Aluminum |
| Standards | CSA C22.2 No 30 |
| Thread Type | NPT |
| Thread Gender | Female |
| Threaded Ends | Female to Female |
| Connection Type | Threaded |
| Manufacturer Part Number | EYF-125AL |
| Ends - Hazardous Fittings | 1-1/4 in FNPT x 1-1/4 FNPT |
| Hazardous Location Rating | Class II, Division 1 and 2, Groups E, F, G |
