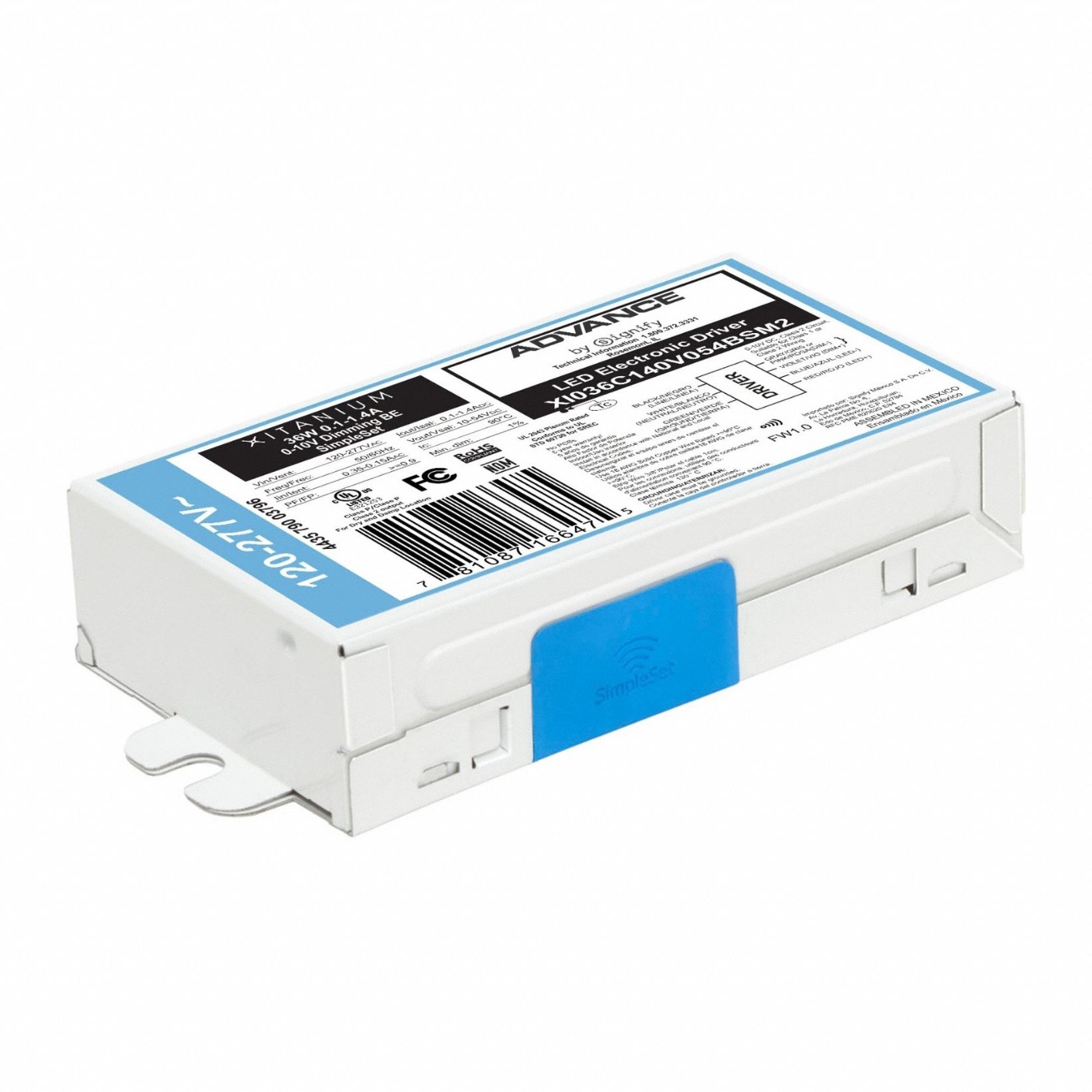

Advance 3G-OTH-383305 — Technical Specifications

Name: Advance 3G-OTH-383305 ADVANCE LED Driver: Class 2, 36 W Max. Power Output, 120 to 277V AC, 10 to 54V DC, 0.10 or 1.40 A (MPN XI036C140V054BSM2). Key specifications — Brand: ADVANCE; Output Voltage: 10 to 54V DC; Dimming Method: 0-10V; Output Current: 0.10 or 1.40 A.
Brand: Advance

The ADVANCE LED Driver: Class 2 is an app programmable driver from ADVANCE, offering a 36 W max power output and operating on 120 to 277V AC input. It provides an output voltage of 10 to 54V DC and a selectable output current of 0.10 or 1.40 A, with 0-10V dimming capability. This driver is identified by manufacturer part number XI036C140V054BSM2.

View Product & Quote

Technical Specifications

Parameter	Value
AC	120 to 277V
DC	10 to 54V
Type	0.10 or 1.40 A
Brand	ADVANCE
Dimming Method	0-10V
Output Current	0.10 or 1.40 A
Output Voltage	10 to 54V DC
Max. Power Output	36 W
Manufacturer Part Number	XI036C140V054BSM2
