Acme 3G-OTH-77649 — Technical Specifications

Name: Acme 3G-OTH-77649 ACME Tubeaxial Fan: Clean Air, 42 5/8 in Blade, 24,244 cfm @ 0.000 in SP, 208-230/460V AC, 1 Phase (MPN HQ420110). Key specifications — Brand: ACME; Includes Drive Package: Yes; Assembly: Assembled; Nameplate Voltage: 208-230/460V AC; Mounting Orientation: Horizontal; Motor Enclosure: Totally Enclosed; Motor Type: Continuous Duty; Airflow @ 0.000 in SP - Range: 20,000 to 40,000 cfm.
Brand: Acme

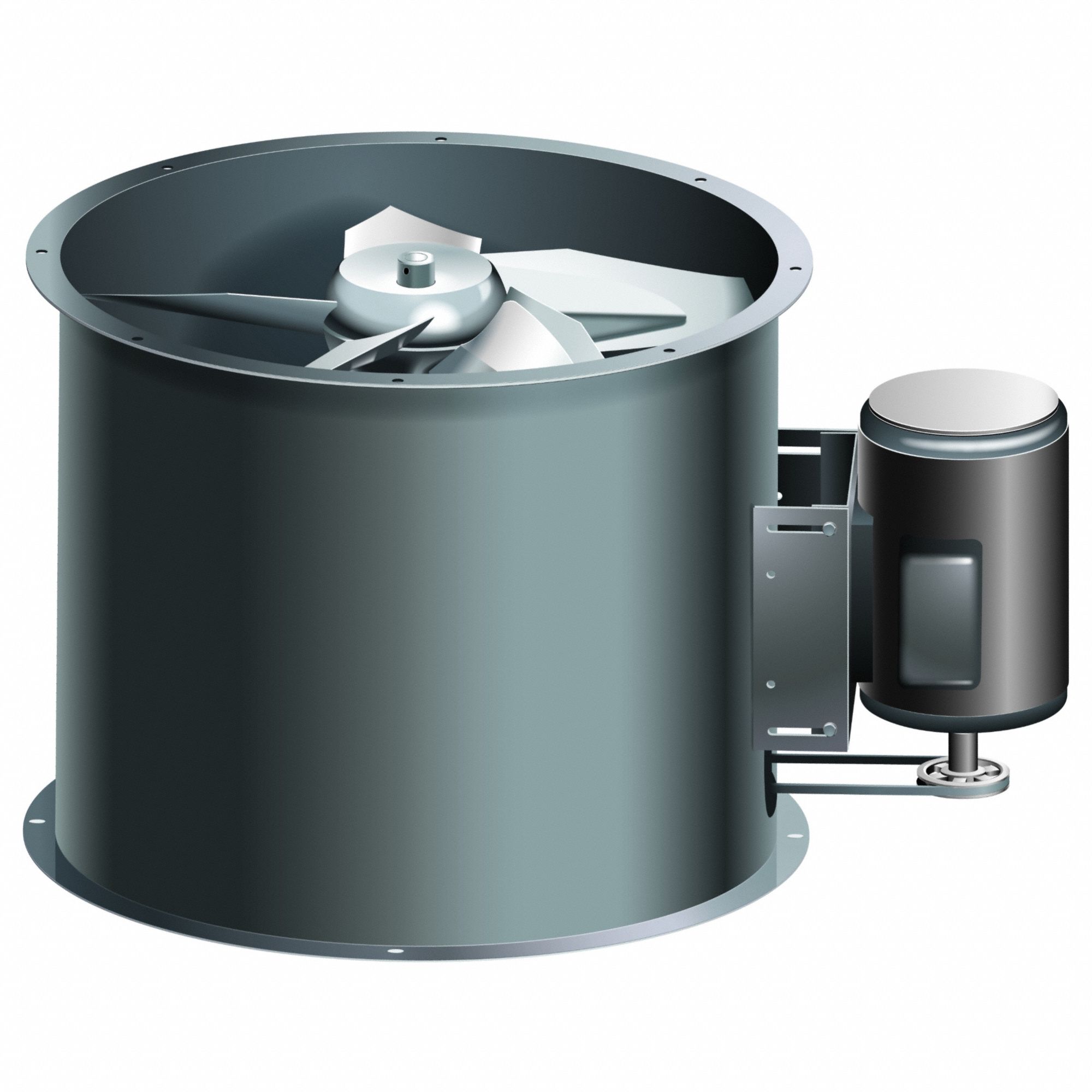

The ACME Tubeaxial Fan: Clean Air (SKU 810DJ0, MPN HQ420110) is a low sound, clean air belt drive fan with drive, assembled and horizontally mounted. It features a continuous duty, totally enclosed motor with a nameplate voltage of 208-230/460V AC and an airflow range of 20,000 to 40,000 cfm at 0.000 in SP.

View Product & Quote

Technical Specifications

Parameter	Value
AC	208-230/460V
Type	24,244 cfm @ 0.000 in SP
Blade	42 5/8 in
Brand	ACME
Phase	1
Assembly	Assembled
Motor Type	Continuous Duty
Motor Enclosure	Totally Enclosed
Nameplate Voltage	208-230/460V AC
Mounting Orientation	Horizontal
Includes Drive Package	Yes
Manufacturer Part Number	HQ420110
Airflow @ 0.000 In SP - Range	20,000 to 40,000 cfm
