Acme 3G-OTH-77551 — Technical Specifications

Name: Acme 3G-OTH-77551 ACME Tubeaxial Fan: Clean Air, 42 5/8 in Blade, 36,218 cfm @ 0.000 in SP, 230/460V AC, 1 Phase (MPN HQ420084). Key specifications — Brand: ACME; Includes Drive Package: Yes; Assembly: Assembled; Nameplate Voltage: 230/460V AC; Mounting Orientation: Horizontal; Motor Enclosure: Totally Enclosed; Motor Type: Continuous Duty; Airflow @ 0.000 in SP - Range: 20,000 to 40,000 cfm.
Brand: Acme

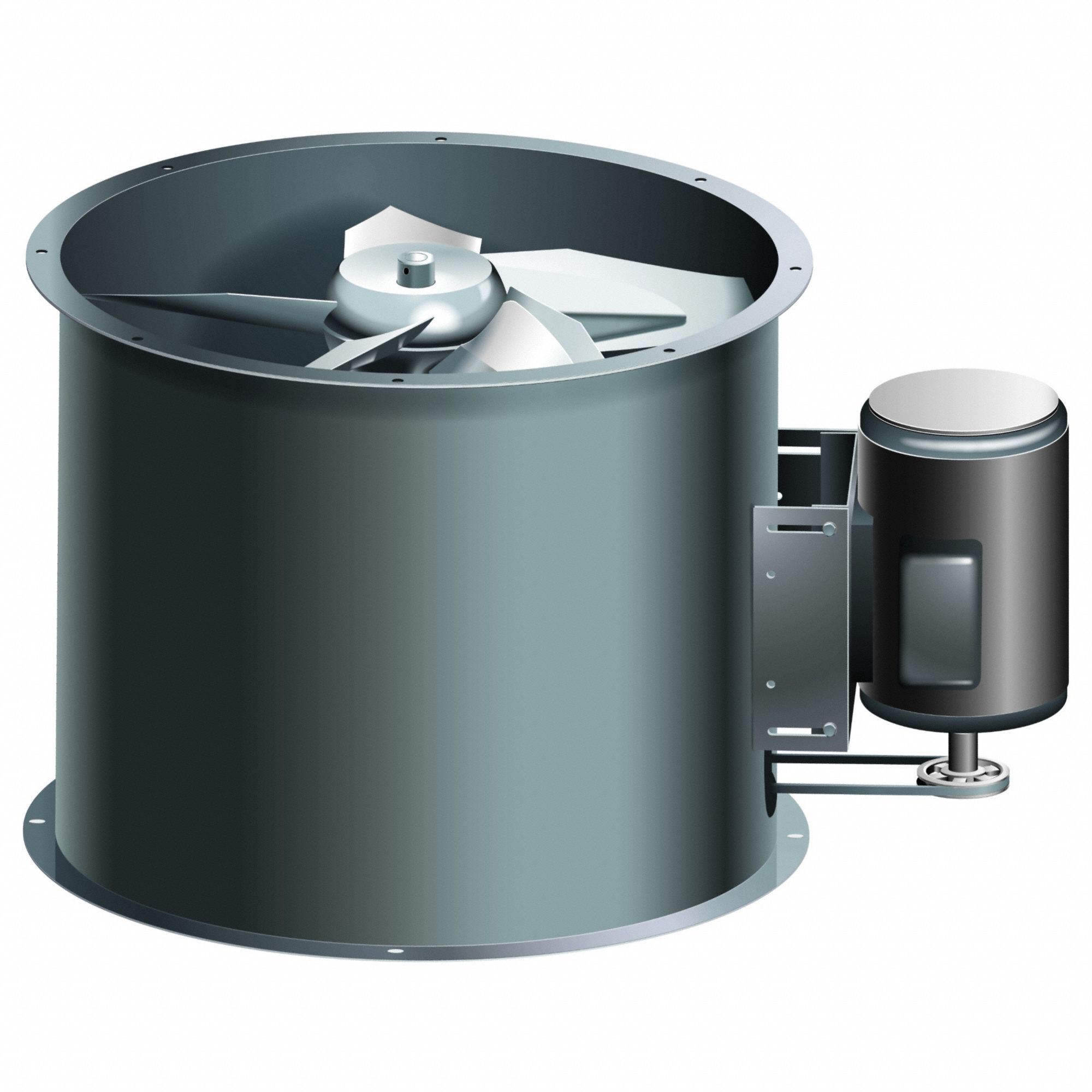

The ACME Tubeaxial Fan: Clean Air is a low sound, clean air belt drive fan with drive, assembled and designed for horizontal mounting. It features a 42 5/8 in blade, a continuous duty motor with a totally enclosed enclosure, and a nameplate voltage of 230/460V AC. The fan delivers an airflow range of 20,000 to 40,000 cfm at 0.000 in SP, with a specific rating of 36,218 cfm at 0.000 in SP for model HQ420084.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	36,218 cfm @ 0.000 in SP
Blade	42 5/8 in
Brand	ACME
Phase	1
Assembly	Assembled
Motor Type	Continuous Duty
Motor Enclosure	Totally Enclosed
Nameplate Voltage	230/460V AC
Mounting Orientation	Horizontal
Includes Drive Package	Yes
Manufacturer Part Number	HQ420084
Airflow @ 0.000 In SP - Range	20,000 to 40,000 cfm
