Acme 3G-OTH-77521 — Technical Specifications

Name: Acme 3G-OTH-77521 ACME Tubeaxial Fan: Clean Air, 36 5/8 in Blade, 19,943 cfm @ 0.000 in SP, 208-230/460V AC, 1 Phase (MPN HQ360081). Key specifications — Brand: ACME; Includes Drive Package: Yes; Assembly: Assembled; Nameplate Voltage: 208-230/460V AC; Mounting Orientation: Vertical; Motor Enclosure: Totally Enclosed; Motor Type: Continuous Duty; Airflow @ 0.000 in SP - Range: 10,000 to 19,999 cfm.
Brand: Acme

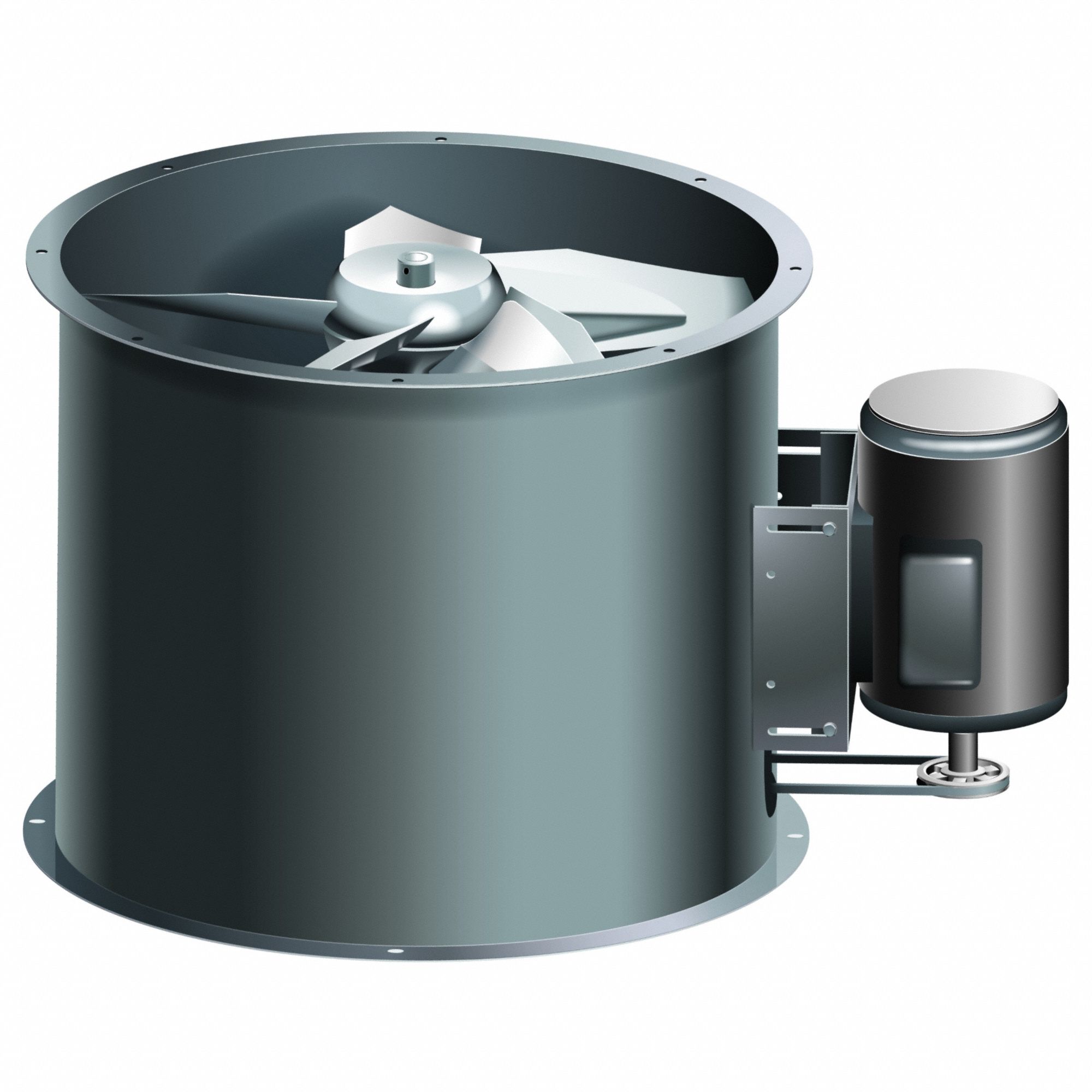

The ACME Tubeaxial Fan: Clean Air (MPN HQ360081) is a low sound, clean air belt drive fan with drive, assembled and rated for vertical mounting. It features a totally enclosed, continuous duty motor with a nameplate voltage of 208-230/460V AC and delivers an airflow range of 10,000 to 19,999 cfm at 0.000 in SP, with a 36 5/8 in blade and 19,943 cfm at 0.000 in SP.

View Product & Quote

Technical Specifications

Parameter	Value
AC	208-230/460V
Type	19,943 cfm @ 0.000 in SP
Blade	36 5/8 in
Brand	ACME
Phase	1
Assembly	Assembled
Motor Type	Continuous Duty
Motor Enclosure	Totally Enclosed
Nameplate Voltage	208-230/460V AC
Mounting Orientation	Vertical
Includes Drive Package	Yes
Manufacturer Part Number	HQ360081
Airflow @ 0.000 In SP - Range	10,000 to 19,999 cfm
