Acme 3G-OTH-77635 — Technical Specifications

Name: Acme 3G-OTH-77635 ACME Tubeaxial Fan: Clean Air, 24 1/2 in Blade, 9,322 cfm @ 0.000 in SP, 208-230/460V AC, 1 Phase (MPN HQ240234). Key specifications — Brand: ACME; Includes Drive Package: Yes; Assembly: Assembled; Nameplate Voltage: 208-230/460V AC; Mounting Orientation: Vertical; Motor Enclosure: Totally Enclosed; Motor Type: Continuous Duty; Airflow @ 0.000 in SP - Range: 0 to 9,999 cfm.
Brand: Acme

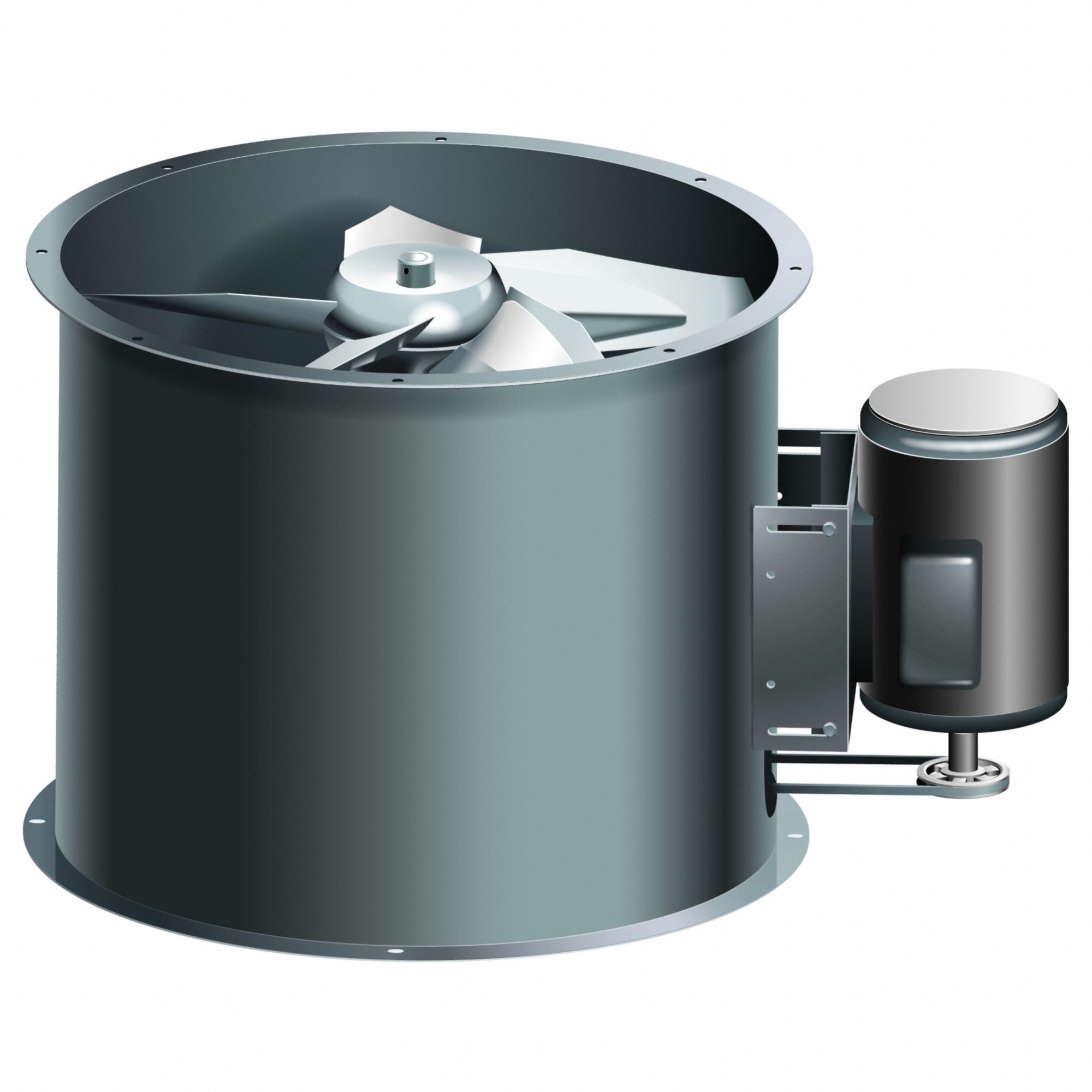

The ACME Tubeaxial Fan: Clean Air is a low sound, clean air belt drive fan with drive, model MPN HQ240234. It features a 24 1/2 in blade, delivers 9,322 cfm @ 0.000 in SP, and operates on 208-230/460V AC, 1 Phase. The fan is assembled with a continuous duty, totally enclosed motor, includes a drive package, and is designed for vertical mounting.

View Product & Quote

Technical Specifications

Parameter	Value
AC	208-230/460V
Type	9,322 cfm @ 0.000 in SP
Blade	24 1/2 in
Brand	ACME
Phase	1
Assembly	Assembled
Motor Type	Continuous Duty
Motor Enclosure	Totally Enclosed
Nameplate Voltage	208-230/460V AC
Mounting Orientation	Vertical
Includes Drive Package	Yes
Manufacturer Part Number	HQ240234
Airflow @ 0.000 In SP - Range	0 to 9,999 cfm
