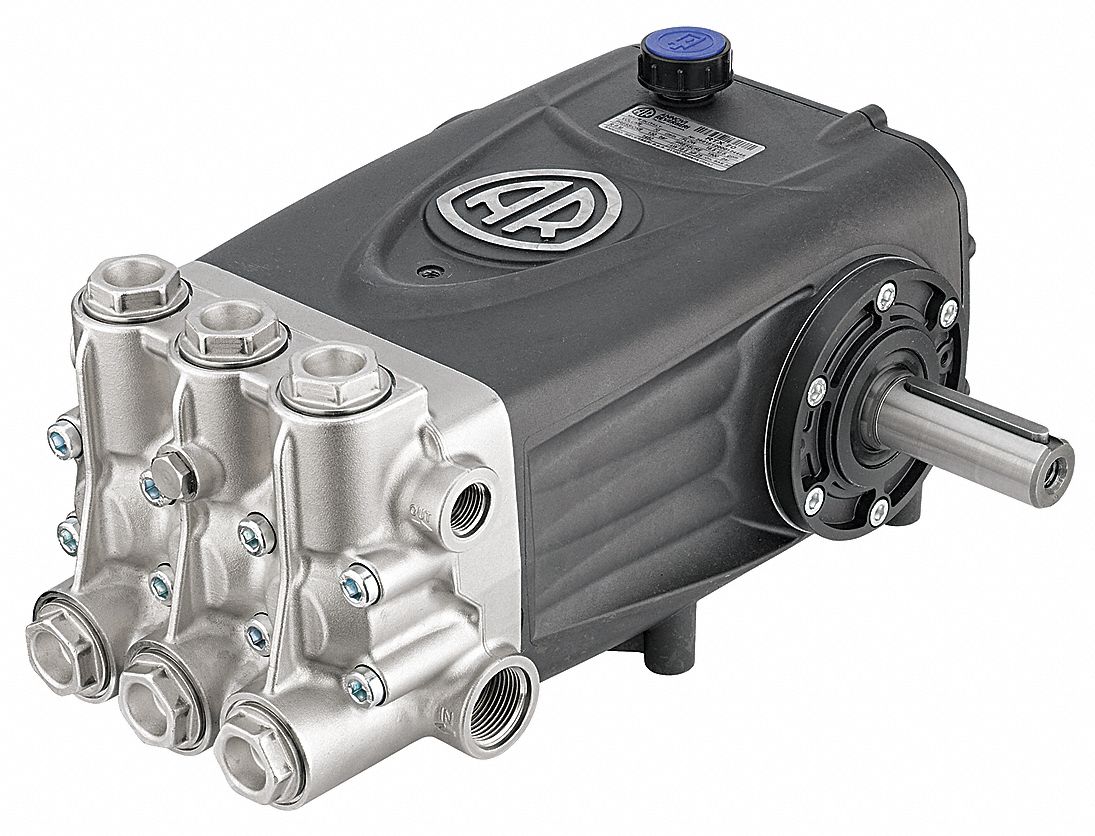

A.r. North America 3G-OTH-93600 — Technical Specifications
The A.R. NORTH AMERICA RTX50 is a belt-driven triplex plunger pump with a solid shaft and horizontal flange design. It features a die-cast aluminum crankcase, forged steel crankshaft, Buna-N seals, and oil bath lubrication, with BSP intake and discharge connections. This pump delivers a maximum flow rate of 12 gpm and is constructed with a nickel-plated brass head.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Nickel Plated Brass |
| Brand | A.R. NORTH AMERICA |
| Shaft Type | Solid |
| Flange Type | Horizontal Plunger Pump |
| Lubrication | Oil Bath |
| Piston Design | Triplex |
| Seal Material | Buna-N |
| Max. Flow Rate | 12 gpm |
| Crankcase Material | Die Cast Aluminum |
| Crankshaft Material | Forged Steel |
| Intake Connection Type | BSP |
| Manufacturer Part Number | RTX50 |
| Discharge Connection Type | BSP |
| NORTH AMERICA Pressure Plunger Pump | Belt-Drive |
