3m 3G-OTH-546759 — Technical Specifications

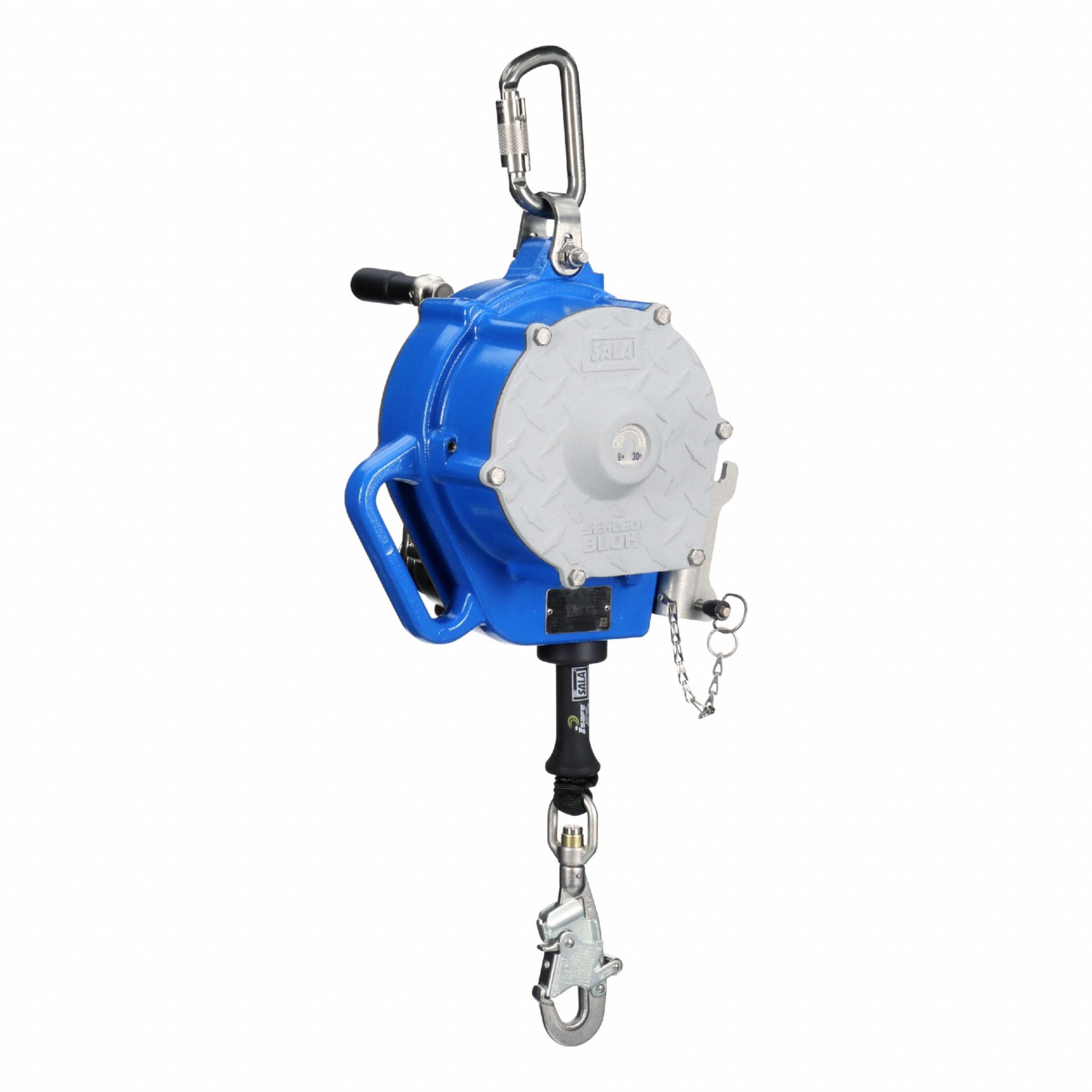

The 3M Self-Retracting Lifeline: Stainless Steel Carabiner Anchor (MPN 3400146) is a mounted SRL with a 30 ft Technora lifeline, 420 lb capacity, and sealed housing. It is ANSI Class 1 (2021) and SRL-R rated, with RFID and overhead-only carabiner anchorage.
Technical Specifications
| Parameter | Value |
|---|---|
| Line | 30 ft |
| Type | Sealed |
| Brand | 3M |
| Sealed | Yes |
| Series | Sealed-Blok |
| Housing | Sealed |
| Capacity | 420 lb |
| ANSI SRL Type | SRL-R |
| RFID Equipped | Yes |
| Sealed Subhead | Sealed |
| Lifeline Material | Technora |
| Anchoring Location | Overhead Only |
| ANSI SRL Class (2014) | Not Rated |
| ANSI SRL Class (2021) | Class 1 |
| Manufacturer Part Number | 3400146 |
| Anchorage End Connection Type | Carabiner |
