What Is a Pump Motor?
A pump motor is the electric motor that drives a pump's rotating element. In industrial and commercial settings, the motor and pump are often closely coupled – either mounted directly on the pump housing or connected via a flexible coupling. For Philippine buyers, understanding the motor's power rating (horsepower), voltage, frame size, and environmental resistance is critical. At 3G Electric, we stock pump motors from brands like DEKKER VACUUM TECHNOLOGIES, CENTURY, U.S. MOTORS, and FINISH THOMPSON – covering liquid ring vacuum pumps, circulator pumps, and general-purpose drum pump applications.
How Pump Motors Work
Pump motors convert electrical energy into mechanical rotation. The rotor spins inside a stator, producing torque that turns the pump impeller. Key components include:
- Stator windings – create a magnetic field.
- Rotor – rotates inside the stator.
- Bearings – support the shaft (typically ball bearings).
- Enclosure – protects against dust, moisture, and corrosive vapors (e.g., 316 stainless steel).
The motor's speed (RPM) and torque must match the pump's performance curve. For example, DEKKER liquid ring vacuum pumps require motors that can handle continuous duty and potentially corrosive gases.
Key Spec Table
| Specification | Range / Example |
|---|---|
| Horsepower (hp) | 3 hp – 10 hp (industrial vacuum) / 0.25 hp – 0.375 hp (circulator) |
| Voltage (V AC) | 115 V AC (single-phase) – 460 V AC (three-phase) |
| Frequency (Hz) | 60 Hz (Philippines standard) |
| Frame size | 48Z, 48, NEMA 56, etc. |
| Maximum vacuum (in Hg) | 29 in Hg (DEKKER liquid ring pumps) |
| Flow rate (cfm) | 35 cfm – 150 cfm (DEKKER pumps) |
| Motor type | Single-phase or three-phase induction |
| Enclosure material | Cast iron, 316 stainless steel |
Types & Applications of Pump Motors in the Philippines
Philippine industrial facilities use pump motors in diverse environments – from humid coastal plants to dry, dusty warehouses. The two main categories represented in our stock are:

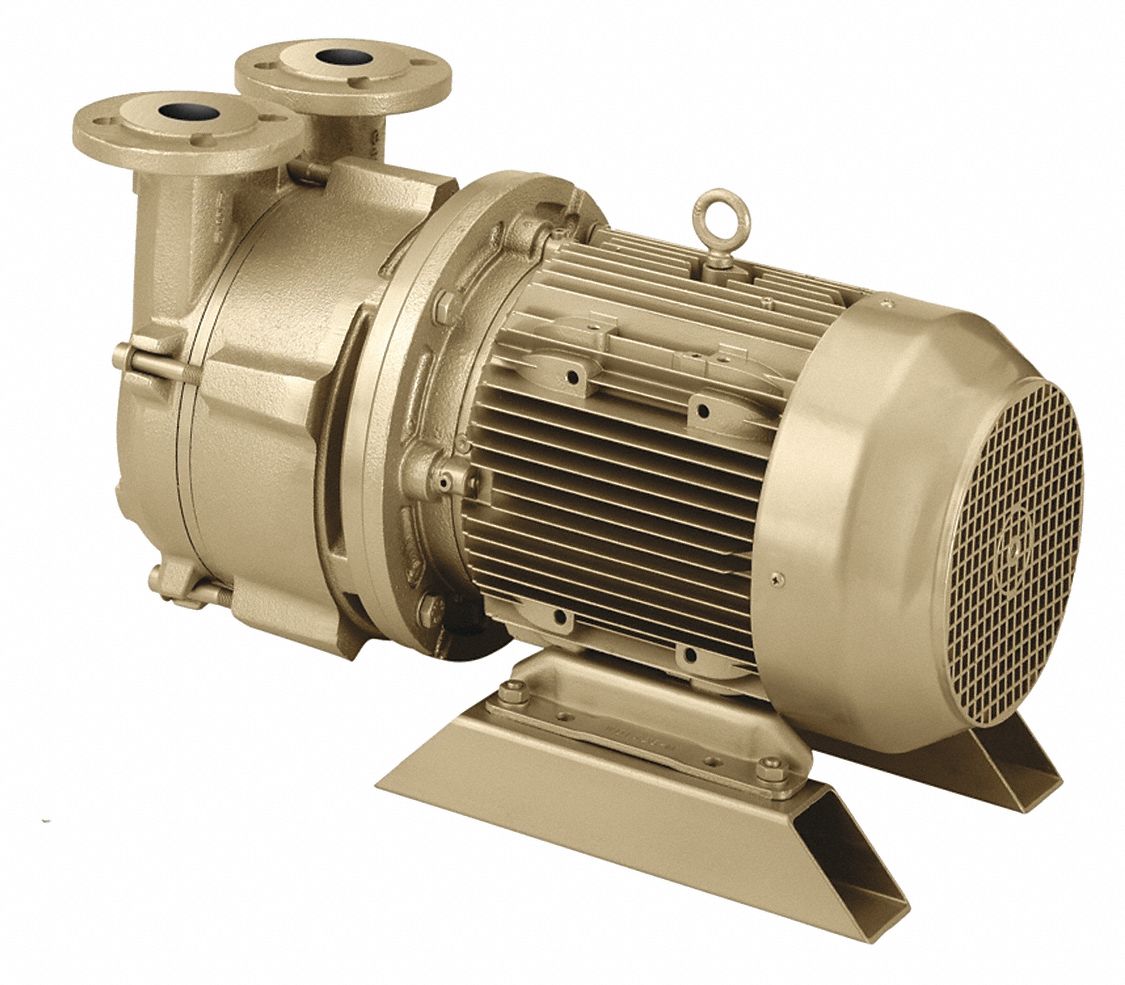

Liquid Ring Vacuum Pump Motors
These motors are integrally mounted on liquid ring vacuum pumps. DEKKER VACUUM TECHNOLOGIES offers 1-stage motor-mounted units with 316 stainless steel internals and cast iron bodies. They are ideal for chemical processing, pharmaceutical, wastewater treatment, and filtration. Power ranges from 3 hp (35 cfm) to 10 hp (150 cfm), all achieving a maximum vacuum of 29 in Hg.
Aftermarket Circulator Pump Motors
CENTURY single-phase motors replace failed motors in hydronic heating boilers, hot water recirculation loops, and fluid transfer systems. With ratings of ¼ hp or ⅜ hp at 115 V AC, these 48Z / 48 frame motors are drop-in replacements for many brands (e.g., Grundfos, Taco). They are widely used in Philippine commercial buildings and residential complexes.
Selection Criteria for Pump Motors (Numbered List)
- Match horsepower to pump demand. Use the pump's performance curve to determine required hp. Undersizing causes overheating; oversizing wastes energy.
- Verify voltage and phase. Philippine industrial sites typically have 460 V AC three-phase, but single-phase 115 V AC is common for smaller circulator pumps.
- Check frame size and shaft dimensions. The frame (e.g., 48Z) determines mounting bolt pattern and shaft diameter. Measure the old motor before ordering.
- Consider environmental resistance. For moist or corrosive gases, choose 316 stainless steel components (like DEKKER models). For dry indoor hydronic loops, cast iron or painted steel suffices.
- Determine duty cycle. Continuous duty (S1) motors are required for 24/7 vacuum applications. Intermittent duty may be acceptable for maintenance or transfer pumps.
- Evaluate additional features. Thermal overload protection, ball bearings, and IP55 enclosures improve reliability in Philippine conditions.
According to the DEKKER VACUUM TECHNOLOGIES Liquid Ring Vacuum Pump Selection Guide, 2024: "Liquid ring vacuum pumps are ideal for handling moist or aggressive vapors commonly found in chemical processing environments."
Product Comparison Table
| Model | Type | Horsepower | Voltage | Flow / Vacuum | Material |
|---|---|---|---|---|---|
| DEKKER 35 cfm Vacuum Pump Motor | Motor-mounted liquid ring | 3 hp | Not specified (typically 230/460 V) | 35 cfm, 29 in Hg | Cast iron + 316 SS |
| DEKKER 75 cfm Vacuum Pump Motor (316 SS) | Motor-mounted liquid ring | 5.5 hp | Not specified (typically 230/460 V) | 75 cfm, 29 in Hg | 316 stainless steel |
| DEKKER 75 cfm Vacuum Pump Motor (Cast Iron) | Motor-mounted liquid ring | 5.5 hp | Not specified (typically 230/460 V) | 75 cfm, 29 in Hg | Cast iron |
| DEKKER 100 cfm Vacuum Pump Motor | Motor-mounted liquid ring | 7.5 hp | Not specified (typically 230/460 V) | 100 cfm, 29 in Hg | 316 stainless steel |
| DEKKER 150 cfm Vacuum Pump Motor | Motor-mounted liquid ring | 10 hp | Not specified (typically 230/460 V) | 150 cfm, 29 in Hg | 316 stainless steel |
| CENTURY 1/4 hp Circulator Pump Motor (48Z) | Aftermarket circulator | 0.25 hp | 115 V AC | N/A (hydronic) | Steel / aluminum |
| CENTURY 1/4 hp Circulator Pump Motor (48) | Aftermarket circulator | 0.25 hp | 115 V AC | N/A (hydronic) | Steel / aluminum |
| CENTURY 3/8 hp Circulator Pump Motor (48Z) | Aftermarket circulator | 0.375 hp | 115 V AC | N/A (hydronic) | Steel / aluminum |
Note: Voltage for DEKKER models is based on typical U.S. industrial motors; confirm with 3G Electric for Philippine voltage compatibility.
Why Source Pump Motors from 3G Electric?
3G Electric is a trusted supplier of industrial pump motors in the Philippines, backed by 35+ years of experience. We stock over 31 products in related categories, including pumps, motors, and controls. Our team provides technical support to help you select the correct horsepower, frame, and material. With direct relationships with brands like DEKKER, CENTURY, U.S. MOTORS, and SOTERA, we can source genuine pump motors – not just what's on the shelf. We offer competitive pricing and reliable delivery across Metro Manila and provincial industrial zones.
Frequently Asked Questions
- How do I select the right pump motor for a Philippine industrial plant? Start by determining the required horsepower from the pump curve, then match voltage (typically 460 V three-phase) and frame size. Consider corrosion resistance if the pump handles aggressive fluids or operates in humid environments.
- Where can I buy a pump motor in the Philippines? 3G Electric supplies pump motors from DEKKER, CENTURY, and U.S. MOTORS. Contact them via phone or email for a quote and lead time.
- What is the difference between a pump motor and a standard electric motor? Pump motors are designed for close-coupled mounting to pumps, often with specific shaft extensions, frame sizes, and duty ratings. Standard motors may not have the correct shaft length or mounting configuration.
- Can I use a single-phase motor for a vacuum pump? It depends on the pump size. Small liquid ring pumps (e.g., 3 hp) may be available in single-phase, but larger pumps almost always require three-phase power for efficiency and starting torque.
- What does the frame size 48Z mean? The 48Z is a NEMA frame dimension that specifies a shaft diameter of 0.5 inches, a shaft extension of 1.75 inches, and a base-to-shaft height of 2.5 inches. It is common for fractional-hp circulator pump motors.
- How do I install a replacement circulator pump motor from CENTURY? Disconnect power, remove the old motor, transfer any mounting bracket or capacitor, align the shaft with the pump impeller, wire according to the diagram (115 V AC, single-phase), and secure bolts. Check rotation direction.
Key Takeaways
- Pump motors are available in a wide power range: ¼ hp for circulators to 10 hp for industrial vacuum pumps.
- Material selection (316 stainless steel vs. cast iron) directly impacts longevity in corrosive or moist Philippine environments.
- Always confirm frame size (e.g., 48Z) and shaft dimensions before ordering a replacement motor.
- For three-phase vacuum pump applications, ensure your facility has 460 V AC (or appropriate step-down transformer).
- 3G Electric provides genuine OEM-compatible options from DEKKER, CENTURY, and other brands, with technical support for sizing and installation.
