WINTERS Differential Pressure Gauge: Single-Side, 1/8 in NPTF Female, PFD, 4 in Dial - Low Operating Pressure Differential Gauges

WINTERSLow Operating Pressure Differential Gauges

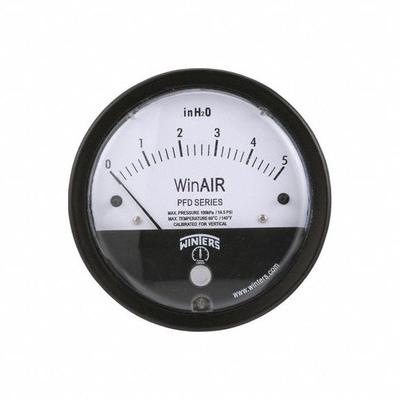

WINTERS Differential Pressure Gauge: Single-Side, 1/8 in NPTF Female, PFD, 4 in Dial

The WINTERS Differential Pressure Gauge: Single-Side is a low operating pressure differential gauge from the PFD series. It features a 4-inch dial, a diaphragm sensor, and an aluminum housing with a 1/8 in NPTF…

SKU 3G-OTH-174252

Brand

WINTERS

Item

Differential Pressure Gauge: Single-Side, 1/8 in NPTF Female, PFD, 4 in Dial

Category

Low Operating Pressure Differential Gauges

Available to Order

Trade pricing by quote — replies within 24h

Qty

WhatsApp an engineer

No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.

Create free account →Log in

Worldwide Shipping

Air & sea freight

Datasheet on Request

Technical specs

1-Day Quote

Replies within 24h

Technical Specifications

WINTERS

Manufacturer Part Number

PFD40023

Series

PFD

Type

PFD, Aluminum, IP67

Dial

4 in

NPTF Female

1/8 in

Sensor Type

Diaphragm

Housing Material

Aluminum

Certificate of Calibration

Included

View Full Spec Sheet

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

WINTERS Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The WINTERS Differential Pressure Gauge: Single-Side is a low operating pressure differential gauge from the PFD series. It features a 4-inch dial, a diaphragm sensor, and an aluminum housing with a 1/8 in NPTF female connection, rated IP67. A certificate of calibration is included with the model PFD40023.

Used in

Common applications for WINTERS

Process control — WINTERS PPC series process pressure gauges for monitoring hydraulic and pneumatic systems in manufacturing plants.

HVAC systems — WINTERS PFD series differential pressure gauges for measuring filter pressure drop in air handling units.

Panel mounting — WINTERS PFP series back-flange panel-mount gauges for control panels in industrial automation.

Temperature measurement — WINTERS TBR series threaded thermowells for protecting temperature sensors in pipelines.

Water treatment — WINTERS differential pressure gauges for monitoring pressure across filtration membranes.

Oil and gas — WINTERS all-stainless steel pressure gauges for corrosive media in upstream and downstream processes.
