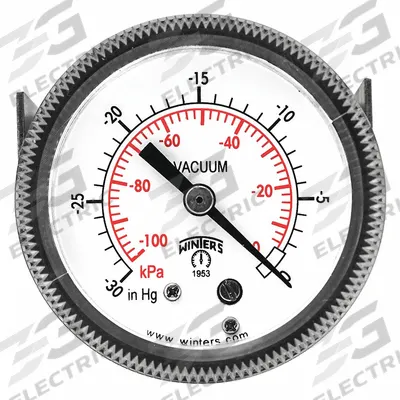

WINTERS Panel-Mount Vacuum Gauge: U-Clamp, 2 in Dial, 1/8 in NPT Male, Center Back - U-Clamp Panel-Mount with Brass/Bronze Wetted Parts
WINTERSU-Clamp Panel-Mount with Brass/Bronze Wetted Parts

WINTERS Panel-Mount Vacuum Gauge: U-Clamp, 2 in Dial, 1/8 in NPT Male, Center Back

The WINTERS Panel-Mount Vacuum Gauge: U-Clamp (SKU 491G03, MPN P9U901424UC) is a U-clamp panel-mount gauge with brass/bronze wetted parts. It features a 2-inch dial, 1/8-inch NPT male center back connection, and an…

SKU 3G-OTH-178792

Brand
WINTERS
Item
Panel-Mount Vacuum Gauge: U-Clamp, 2 in Dial, 1/8 in NPT Male, Center Back
Category
U-Clamp Panel-Mount with Brass/Bronze Wetted Parts
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

WINTERS
Manufacturer Part Number
P9U901424UC
Type
Center Back, ±2-1-2% Accuracy
Dial
2 in
Accuracy
±2-1-2%
NPT Male
1/8 in
Gauge Wetted Parts
Brass / Bronze
Vibration Resistance Properties
None
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

WINTERS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The WINTERS Panel-Mount Vacuum Gauge: U-Clamp (SKU 491G03, MPN P9U901424UC) is a U-clamp panel-mount gauge with brass/bronze wetted parts. It features a 2-inch dial, 1/8-inch NPT male center back connection, and an accuracy of ±2-1-2%. This gauge has no vibration resistance properties.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the WINTERS Panel-Mount Vacuum Gauge used for?

The WINTERS Panel-Mount Vacuum Gauge is used to measure negative pressure (vacuum) in industrial systems such as pumps, compressors, and filtration equipment. Its U-clamp design allows secure panel mounting, and the brass/bronze wetted parts make it suitable for non-corrosive gases and liquids.

What are the specifications of the WINTERS Panel-Mount Vacuum Gauge?

The WINTERS Panel-Mount Vacuum Gauge (MPN P9U901424UC) has a 2-inch dial, 1/8-inch NPT male center back connection, and ±2-1-2% accuracy. It features brass/bronze wetted parts and no vibration resistance. The U-clamp enables panel mounting for stable readings in vacuum applications.

Where to buy the WINTERS Panel-Mount Vacuum Gauge worldwide?

You can source the WINTERS Panel-Mount Vacuum Gauge through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this gauge.

How to install the WINTERS Panel-Mount Vacuum Gauge?

Install the WINTERS gauge by inserting it through a panel cutout and tightening the U-clamp from behind. Connect the 1/8-inch NPT male center back fitting to a compatible port using thread sealant. Avoid overtightening to prevent damage to the brass/bronze wetted parts.

Used in

Common applications for WINTERS
Process control — WINTERS PPC series process pressure gauges for monitoring hydraulic and pneumatic systems in manufacturing plants.
HVAC systems — WINTERS PFD series differential pressure gauges for measuring filter pressure drop in air handling units.
Panel mounting — WINTERS PFP series back-flange panel-mount gauges for control panels in industrial automation.
Temperature measurement — WINTERS TBR series threaded thermowells for protecting temperature sensors in pipelines.
Water treatment — WINTERS differential pressure gauges for monitoring pressure across filtration membranes.
Oil and gas — WINTERS all-stainless steel pressure gauges for corrosive media in upstream and downstream processes.

WINTERS Products

3G Electric supplies WINTERS u-clamp panel-mount with brass/bronze wetted parts. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
