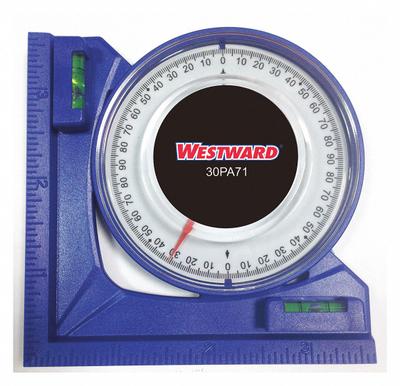

WESTWARD Angle Finder: 3 Quadrants, 3 1/2 in Base Lg, Magnetic, Degrees, 2 in Overall Ht - Angle Locators
WESTWARDAngle Locators

WESTWARD Angle Finder: 3 Quadrants, 3 1/2 in Base Lg, Magnetic, Degrees, 2 in Overall Ht

The WESTWARD Angle Finder: 3 Quadrants (SKU 30PA71) is a plastic angle locator with a polystyrene construction. It features a 3 1/2 in base length, magnetic base, and measures angles from 0° to 90° with a 0.5°…

SKU 3G-OTH-305593

Brand
WESTWARD
Item
Angle Finder: 3 Quadrants, 3 1/2 in Base Lg, Magnetic, Degrees, 2 in Overall Ht
Category
Angle Locators
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

WESTWARD
Manufacturer Part Number
30PA71
Type
Magnetic, Degrees, 0°to 90°
Base Lg
3 1/2 in
Overall Ht
2 in
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

WESTWARD Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The WESTWARD Angle Finder: 3 Quadrants (SKU 30PA71) is a plastic angle locator with a polystyrene construction. It features a 3 1/2 in base length, magnetic base, and measures angles from 0° to 90° with a 0.5° accuracy. The tool includes 1 level and 1 plumb, and has an overall height of 2 in.
