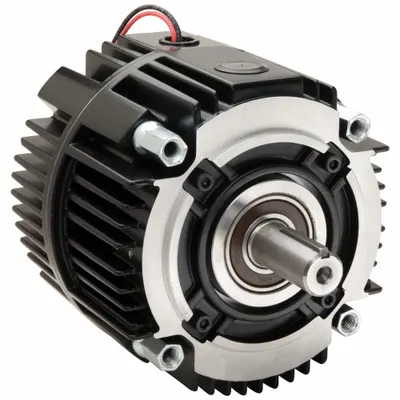

WARNER ELECTRIC Clutch/Brake: 24V DC, 24V DC, 24V DC, Vented, 30 ft-lb Static Torque
The WARNER ELECTRIC Combined Clutch & Brake Unit (SKU 3G-OTH-109301, MPN UM180-1020-24) is a 24V DC, vented unit designed for use with a NEMA C-Face motor/reducer. It mounts on a NEMA C-Face motor or between the…
SKU 3G-OTH-109301
Also listed as: UM180102024 · UM180 1020 24
Local availability & support — the Philippines
- Delivery
- 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
- Payment
- Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
- Ships to
- Manila, Quezon City, Cebu, Davao, Batangas
Need installation or engineering help?
Ask a question
Product Description
The WARNER ELECTRIC Combined Clutch & Brake Unit (SKU 3G-OTH-109301, MPN UM180-1020-24) is a 24V DC, vented unit designed for use with a NEMA C-Face motor/reducer. It mounts on a NEMA C-Face motor or between the motor and reducer, and is rated for 30 hp @ 3450 RPM with a 182C NEMA motor frame designation. The unit includes mounting hardware and provides 30 ft-lb static torque.
Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.
Frequently Asked Questions
What is the WARNER ELECTRIC UM180-1020-24 clutch/brake used for?
The WARNER ELECTRIC UM180-1020-24 is a combined clutch and brake unit used to control start/stop and torque transmission in industrial machinery. It is designed for NEMA C-Face motors or reducers, typically in conveyors, packaging equipment, and material handling systems requiring precise engagement and disengagement.
What are the specifications of the WARNER ELECTRIC UM180-1020-24?
The WARNER ELECTRIC UM180-1020-24 is a 24V DC, vented combined clutch/brake unit. It delivers 30 ft-lb static torque, is rated for 30 hp at 3450 RPM, and fits a 182C NEMA motor frame. It includes mounting hardware and mounts on a NEMA C-Face motor or between motor and reducer.
Where to buy the WARNER ELECTRIC UM180-1020-24 worldwide?
You can source the WARNER ELECTRIC UM180-1020-24 from 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we provide competitive pricing and reliable sourcing for this clutch/brake unit.
How to install the WARNER ELECTRIC UM180-1020-24 clutch/brake?
Install the WARNER ELECTRIC UM180-1020-24 by mounting it directly on a NEMA C-Face motor shaft or between the motor and reducer using the included hardware. Ensure the 24V DC power supply matches the coil voltage. Align the unit properly to avoid binding, and follow standard torque specifications for mounting bolts.
Used in
Common applications for WARNER ELECTRICWARNER ELECTRIC Products
3G Electric supplies WARNER ELECTRIC combined clutch & brake units. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
