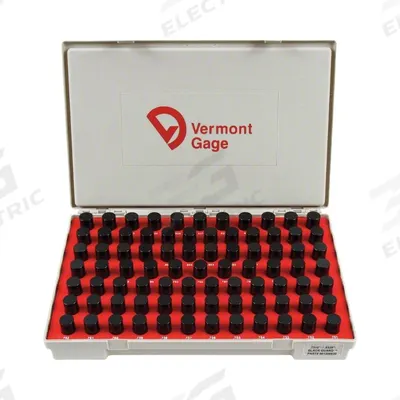

VERMONT GAGE Pin Gauges: Go (Plus), 24.01 mm to 25.49 mm, 0.01 mm Dia Increment - Go (Plus) Pin Gauge Sets - Black Oxide Finish
VERMONT GAGEGo (Plus) Pin Gauge Sets - Black Oxide Finish

VERMONT GAGE Pin Gauges: Go (Plus), 24.01 mm to 25.49 mm, 0.01 mm Dia Increment

The VERMONT GAGE Go (Plus) Pin Gauge Set (MPN 902301000) is a black oxide finished pin gauge set covering diameters from 24.01 mm to 25.49 mm in 0.01 mm increments. It features a ZZ tolerance class with a tolerance…

SKU 3G-OTH-222424

Brand
VERMONT GAGE
Item
Pin Gauges: Go
Category
Go (Plus) Pin Gauge Sets - Black Oxide Finish
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

VERMONT GAGE
Manufacturer Part Number
902301000
Type
24.01 mm to 25.49 mm, ZZ Tolerance Class
Dia Increment
0.01 mm
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

VERMONT GAGE Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The VERMONT GAGE Go (Plus) Pin Gauge Set (MPN 902301000) is a black oxide finished pin gauge set covering diameters from 24.01 mm to 25.49 mm in 0.01 mm increments. It features a ZZ tolerance class with a tolerance of +/-0.0050 mm, designed for go/no-go inspection of hole sizes and locations.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the VERMONT GAGE Go (Plus) Pin Gauge Set used for?

The VERMONT GAGE Go (Plus) Pin Gauge Set is used for go/no-go inspection of hole diameters and locations in manufacturing and quality control. It checks whether a hole is within specified tolerance limits, ensuring parts meet design requirements in industries like automotive and aerospace.

What are the specifications of the VERMONT GAGE 902301000 pin gauge set?

The VERMONT GAGE 902301000 pin gauge set covers diameters from 24.01 mm to 25.49 mm in 0.01 mm increments. It has a ZZ tolerance class with a tolerance of +/-0.0050 mm. The set features a black oxide finish and includes Go (Plus) pins for hole inspection.

Where to buy VERMONT GAGE pin gauges worldwide?

You can source the VERMONT GAGE pin gauge set through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this item.

How to select the correct VERMONT GAGE pin gauge for hole inspection?

To select the correct VERMONT GAGE pin gauge, match the nominal diameter to your hole size and choose the appropriate tolerance class. For go/no-go inspection, use a Go (Plus) gauge to verify the minimum acceptable hole diameter. Always verify the gauge's tolerance class, such as ZZ (+/-0.0050 mm), matches your application requirements.

Used in

Common applications for VERMONT GAGE
Automotive manufacturing — VERMONT GAGE Class X pin gauges for inspecting engine cylinder bore diameters after honing.
Aerospace machining — VERMONT GAGE No-Go pin gauges for verifying hole tolerances in aircraft structural components.
Tool and die maintenance — VERMONT GAGE drill blanks used as reference pins for aligning dies and fixtures.
Quality control labs — VERMONT GAGE Class X pin gauges for calibrating bore gauges and micrometers.
General metalworking — VERMONT GAGE Go pin gauges for checking slot widths in machined parts.
Custom gage making — VERMONT GAGE high-speed steel drill blanks as raw material for fabricating custom inspection plugs.

VERMONT GAGE Products

3G Electric supplies VERMONT GAGE go (plus) pin gauge sets - black oxide finish. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
