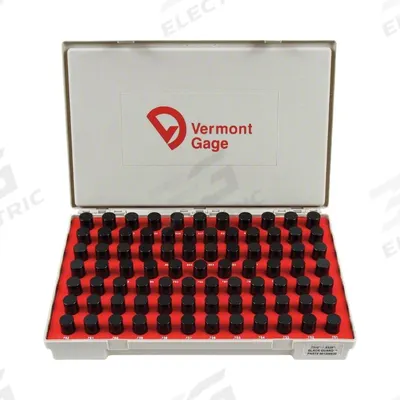

VERMONT GAGE Pin Gauges: No-Go (Minus), 22.5 mm to 23.98 mm - No-Go (Minus) Pin Gauge Sets - Black Oxide Finish
VERMONT GAGENo-Go (Minus) Pin Gauge Sets - Black Oxide Finish

VERMONT GAGE Pin Gauges: No-Go (Minus), 22.5 mm to 23.98 mm

The VERMONT GAGE No-Go (Minus) Pin Gauge Set (MPN 902200900) is a black oxide finished pin gauge set covering 22.5 mm to 23.98 mm in 0.01 mm diameter increments. It features a ZZ tolerance class with a dimensional…

SKU 3G-OTH-407595

Brand
VERMONT GAGE
Item
Pin Gauges: No-Go
Category
No-Go (Minus) Pin Gauge Sets - Black Oxide Finish
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

VERMONT GAGE
Manufacturer Part Number
902200900
Type
22.5 mm to 23.98 mm
Dia Increment
0.01 mm
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

VERMONT GAGE Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The VERMONT GAGE No-Go (Minus) Pin Gauge Set (MPN 902200900) is a black oxide finished pin gauge set covering 22.5 mm to 23.98 mm in 0.01 mm diameter increments. It features a ZZ tolerance class with a dimensional tolerance of +/-0.0050 mm, designed for verifying maximum material limits in industrial inspection.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is a VERMONT GAGE No-Go (Minus) pin gauge set used for?

This pin gauge set is used for industrial inspection to verify maximum material limits. The No-Go (Minus) gauges check that holes or features do not exceed their maximum allowable size, ensuring parts meet design tolerances in quality control and manufacturing processes.

What are the specifications of the VERMONT GAGE 902200900 pin gauge set?

The VERMONT GAGE No-Go (Minus) Pin Gauge Set (MPN 902200900) covers 22.5 mm to 23.98 mm in 0.01 mm diameter increments. It has a ZZ tolerance class with a dimensional tolerance of +/-0.0050 mm and a black oxide finish for corrosion resistance.

Where to buy VERMONT GAGE pin gauges worldwide?

3G Electric supplies VERMONT GAGE pin gauges worldwide. As a global industrial equipment distributor since 1990, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time on the 902200900 set.

How to select the correct No-Go pin gauge for inspection?

Select a No-Go (Minus) pin gauge that matches the maximum allowable hole diameter per your engineering drawing. The gauge should not enter the hole if the part is within tolerance. VERMONT GAGE sets like the 902200900 provide precise 0.01 mm increments for accurate go/no-go testing.

Used in

Common applications for VERMONT GAGE
Automotive manufacturing — VERMONT GAGE Class X pin gauges for inspecting engine cylinder bore diameters after honing.
Aerospace machining — VERMONT GAGE No-Go pin gauges for verifying hole tolerances in aircraft structural components.
Tool and die maintenance — VERMONT GAGE drill blanks used as reference pins for aligning dies and fixtures.
Quality control labs — VERMONT GAGE Class X pin gauges for calibrating bore gauges and micrometers.
General metalworking — VERMONT GAGE Go pin gauges for checking slot widths in machined parts.
Custom gage making — VERMONT GAGE high-speed steel drill blanks as raw material for fabricating custom inspection plugs.
