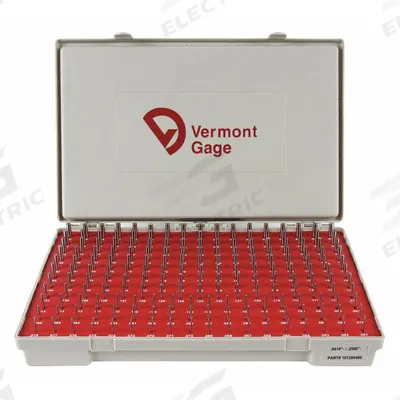

VERMONT GAGE Pin Gauge Set: No-Go (Minus), 0.251 in to 0.5 in - No-Go (Minus) Pin Gauge Sets - Uncoated Tool Steel
VERMONT GAGENo-Go (Minus) Pin Gauge Sets - Uncoated Tool Steel

VERMONT GAGE Pin Gauge Set: No-Go (Minus), 0.251 in to 0.5 in

The VERMONT GAGE Pin Gauge Set: No-Go (Minus) is a No-Go (Minus) pin gauge set made from uncoated tool steel. It covers a diameter range of 0.251 in to 0.5 in with a 0.001 in diameter increment, and features a ZZ…

SKU 3G-OTH-250200

Brand
VERMONT GAGE
Item
Pin Gauge Set: No-Go
Category
No-Go (Minus) Pin Gauge Sets - Uncoated Tool Steel
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

VERMONT GAGE
Manufacturer Part Number
101200500
Type
0.251 in to 0.5 in
Dia Increment
0.001 in
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

VERMONT GAGE Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The VERMONT GAGE Pin Gauge Set: No-Go (Minus) is a No-Go (Minus) pin gauge set made from uncoated tool steel. It covers a diameter range of 0.251 in to 0.5 in with a 0.001 in diameter increment, and features a ZZ tolerance class with a tolerance of +/-0.00020 in. This set is identified by manufacturer part number 101200500.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is a VERMONT GAGE No-Go (Minus) pin gauge set used for?

A No-Go (Minus) pin gauge set is used to verify the minimum allowable hole diameter in precision machining and quality control. The minus pins check that a hole is not smaller than the specified lower tolerance limit, ensuring parts meet engineering specifications.

What are the specifications of the VERMONT GAGE pin gauge set 101200500?

This VERMONT GAGE set covers 0.251 in to 0.5 in diameter in 0.001 in increments. It has a ZZ tolerance class with a tolerance of +/-0.00020 in. The pins are made from uncoated tool steel and are identified by manufacturer part number 101200500.

Where to buy VERMONT GAGE pin gauge sets worldwide?

3G Electric supplies VERMONT GAGE pin gauge sets worldwide. As a global industrial distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us to source the 101200500 set or other precision gauges for your facility.

How to select the correct VERMONT GAGE pin gauge set for inspection?

Select a No-Go (Minus) set when you need to check the minimum hole diameter. Match the diameter range and increment to your application. The ZZ tolerance class (+/-0.00020 in) is suitable for general inspection. Always verify the tolerance matches your drawing requirements.

Used in

Common applications for VERMONT GAGE
Automotive manufacturing — VERMONT GAGE Class X pin gauges for inspecting engine cylinder bore diameters after honing.
Aerospace machining — VERMONT GAGE No-Go pin gauges for verifying hole tolerances in aircraft structural components.
Tool and die maintenance — VERMONT GAGE drill blanks used as reference pins for aligning dies and fixtures.
Quality control labs — VERMONT GAGE Class X pin gauges for calibrating bore gauges and micrometers.
General metalworking — VERMONT GAGE Go pin gauges for checking slot widths in machined parts.
Custom gage making — VERMONT GAGE high-speed steel drill blanks as raw material for fabricating custom inspection plugs.
