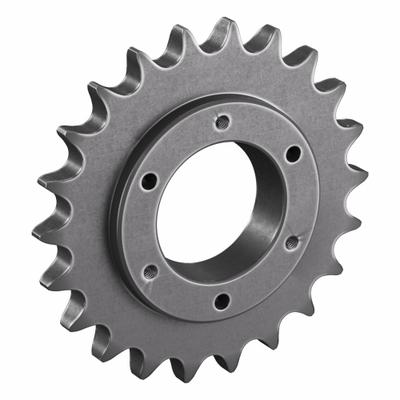

TSUBAKI Sprocket: For 60 Chain, 22 Teeth, 5.27 in Pitch Dia, 5.67 in Outside Dia - Size 60 Bushed-Bore Roller Chain Sprockets
TSUBAKISize 60 Bushed-Bore Roller Chain Sprockets

TSUBAKI Sprocket: For 60 Chain, 22 Teeth, 5.27 in Pitch Dia, 5.67 in Outside Dia

The TSUBAKI Sprocket is a Size 60 bushed-bore roller chain sprocket designed for 60 chain. This steel sprocket features 22 teeth, a 5.27-inch pitch diameter, and a 5.67-inch outside diameter. It requires an SDS…

SKU 3G-OTH-125384

Brand
TSUBAKI
Item
Sprocket: For 60 Chain, 22 Teeth, 5.27 in Pitch Dia, 5.67 in Outside Dia
Category
Size 60 Bushed-Bore Roller Chain Sprockets
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

TSUBAKI
Manufacturer Part Number
60SDS22
Type
Steel
Teeth
22
Pitch Dia
5.27 in
Outside Dia
5.67 in
Required Bushing Series
SDS
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

TSUBAKI Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The TSUBAKI Sprocket is a Size 60 bushed-bore roller chain sprocket designed for 60 chain. This steel sprocket features 22 teeth, a 5.27-inch pitch diameter, and a 5.67-inch outside diameter. It requires an SDS bushing series for installation, as indicated by the manufacturer part number 60SDS22.

Used in

Common applications for TSUBAKI
Material handling conveyors — TSUBAKI C2080H connecting links for heavy-duty chain systems
Packaging machinery — TSUBAKI size 60 roller chains with 60NEPCL connecting links for coated chain applications
Automotive assembly lines — TSUBAKI 80NPSK1CL attachment links for positioning fixtures on single-strand chains
Food processing equipment — TSUBAKI nickel-plated chains and sprockets (e.g., 50BTL48) for washdown environments
General power transmission — TSUBAKI PL1G keyless bushings for shaft mounting without keyways in drive systems
Conveyor drive systems — TSUBAKI 40BTL24 sprockets for size 40 chain in light-to-medium load applications

TSUBAKI Products

3G Electric supplies TSUBAKI size 60 bushed-bore roller chain sprockets. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
