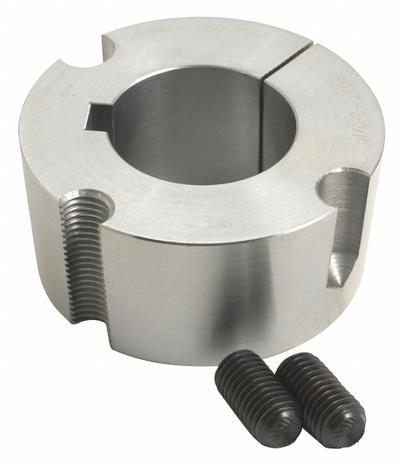

TRITAN Taper Lock Bushing: 3535, 1 1/4 in Bore Dia, 3.5 in Overall Lg, 5 in Overall Dia - Taper Lock Bushings
TRITANTaper Lock Bushings

TRITAN Taper Lock Bushing: 3535, 1 1/4 in Bore Dia, 3.5 in Overall Lg, 5 in Overall Dia

The TRITAN Taper Lock Bushing 3535 is a taper lock bushing with an 8° taper, designed for inch-dimension shaft mounting. It features a 1 1/4 in bore diameter, 3.5 in overall length, and 5 in overall diameter…

SKU 3G-OTH-124791

Brand
TRITAN
Item
Taper Lock Bushing: 3535, 1 1/4 in Bore Dia, 3.5 in Overall Lg, 5 in Overall Dia
Category
Taper Lock Bushings
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

TRITAN
Manufacturer Part Number
3535 X 1-1/4
Type
Inch, 8°
Overall Lg
3.5 in
Taper
8°
Bore Dia
1 1/4 in
Overall Dia
5 in
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

TRITAN Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The TRITAN Taper Lock Bushing 3535 is a taper lock bushing with an 8° taper, designed for inch-dimension shaft mounting. It features a 1 1/4 in bore diameter, 3.5 in overall length, and 5 in overall diameter, identified by manufacturer part number 3535 X 1-1/4.

Used in

Common applications for TRITAN
Poultry processing conveyors — TRITAN food-grade radial ball bearings (SS3829 2RS FM222) with double contact seals
Material handling systems — TRITAN spherical insert bearings (SB205-16G) with set screw locking for shaft mounting
High-temperature oven rollers — TRITAN miniature ball bearings (SSRI814 ZZ SRL) rated to 302°F
Self-lubricating pivot joints — TRITAN spherical plain bearings (GE 30TE 2RS) with PTFE sliding surface
Flange-mounted conveyor idlers — TRITAN 4-bolt flange bearings (UCF210-31) in cast iron housings
Chain drive repairs — TRITAN offset links (40-1R OSL) for ANSI #40 roller chains

TRITAN Products

3G Electric supplies TRITAN taper lock bushings. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
