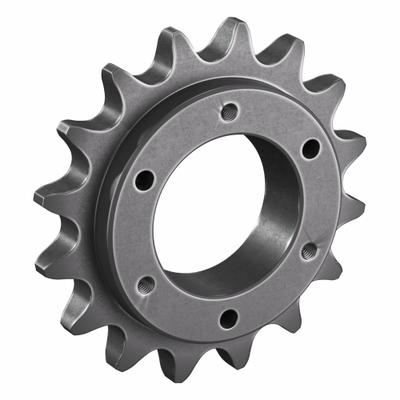

TRITAN Sprocket: For 100 Chain, 16 Teeth, 6.407 in Pitch Dia, 7.03 in Outside Dia - Size 100 Bushed-Bore Roller Chain Sprockets
TRITANSize 100 Bushed-Bore Roller Chain Sprockets

TRITAN Sprocket: For 100 Chain, 16 Teeth, 6.407 in Pitch Dia, 7.03 in Outside Dia

The TRITAN Sprocket: For 100 Chain is a Size 100 Bushed-Bore Roller Chain Sprocket, model 100SF16H. It features 16 teeth, a 6.407-inch pitch diameter, and a 7.03-inch outside diameter, constructed from steel. This…

SKU 3G-OTH-126812

Brand
TRITAN
Item
Sprocket: For 100 Chain, 16 Teeth, 6.407 in Pitch Dia, 7.03 in Outside Dia
Category
Size 100 Bushed-Bore Roller Chain Sprockets
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

TRITAN
Manufacturer Part Number
100SF16H
Type
Steel
Teeth
16
Pitch Dia
6.407 in
Outside Dia
7.03 in
Required Bushing Series
SF
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

TRITAN Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The TRITAN Sprocket: For 100 Chain is a Size 100 Bushed-Bore Roller Chain Sprocket, model 100SF16H. It features 16 teeth, a 6.407-inch pitch diameter, and a 7.03-inch outside diameter, constructed from steel. This sprocket requires an SF bushing series for installation.

Used in

Common applications for TRITAN
Poultry processing conveyors — TRITAN food-grade radial ball bearings (SS3829 2RS FM222) with double contact seals
Material handling systems — TRITAN spherical insert bearings (SB205-16G) with set screw locking for shaft mounting
High-temperature oven rollers — TRITAN miniature ball bearings (SSRI814 ZZ SRL) rated to 302°F
Self-lubricating pivot joints — TRITAN spherical plain bearings (GE 30TE 2RS) with PTFE sliding surface
Flange-mounted conveyor idlers — TRITAN 4-bolt flange bearings (UCF210-31) in cast iron housings
Chain drive repairs — TRITAN offset links (40-1R OSL) for ANSI #40 roller chains

TRITAN Products

3G Electric supplies TRITAN size 100 bushed-bore roller chain sprockets. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
